GD150FFY120C6SF - IGBT

STARPOWER

The GD150FFY120C6SF by STARPOWER is a IGBT. Below is the official datasheet preview.

📥 Download Datasheet

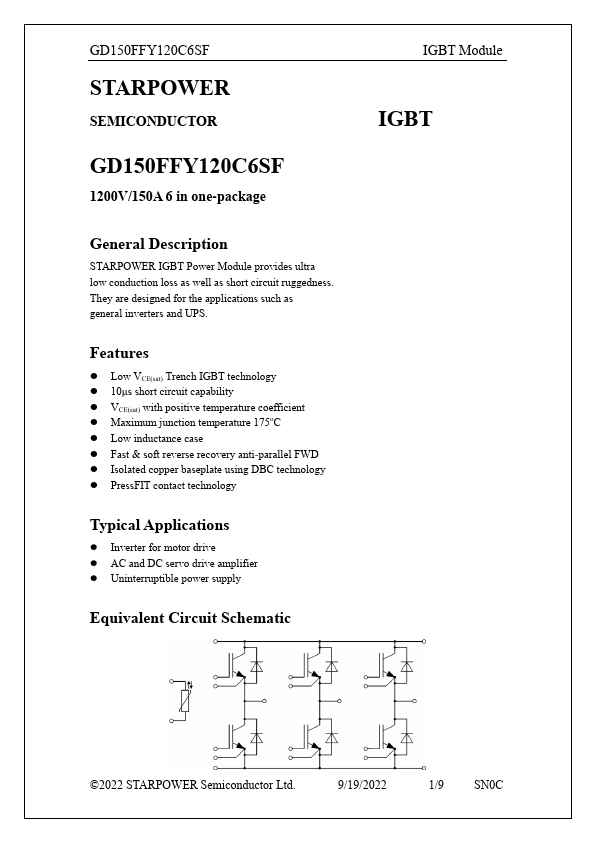

GD150FFY120C6SF IGBT by STARPOWER - Datasheet Preview — Official preview page of the GD150FFY120C6SF IGBT datasheet (STARPOWER).

Datasheet Details

Part number	GD150FFY120C6SF
Manufacturer	STARPOWER
File Size	563.13 KB
Description	IGBT
Datasheet	GD150FFY120C6SF-STARPOWER.pdf

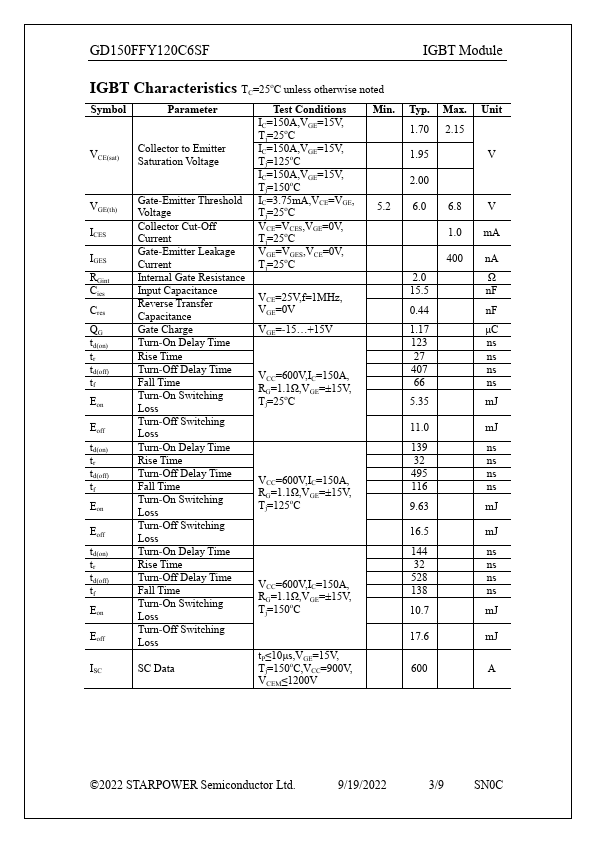

Additional preview pages of the GD150FFY120C6SF datasheet.

GD150FFY120C6SF Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology.
PressFIT contact technology Typical.
