GD150FFX120C6S - IGBT

STARPOWER

The GD150FFX120C6S by STARPOWER is a IGBT. Below is the official datasheet preview.

📥 Download Datasheet

GD150FFX120C6S IGBT by STARPOWER - Datasheet Preview — Official preview page of the GD150FFX120C6S IGBT datasheet (STARPOWER).

Datasheet Details

Part number	GD150FFX120C6S
Manufacturer	STARPOWER
File Size	325.91 KB
Description	IGBT
Datasheet	GD150FFX120C6S-STARPOWER.pdf

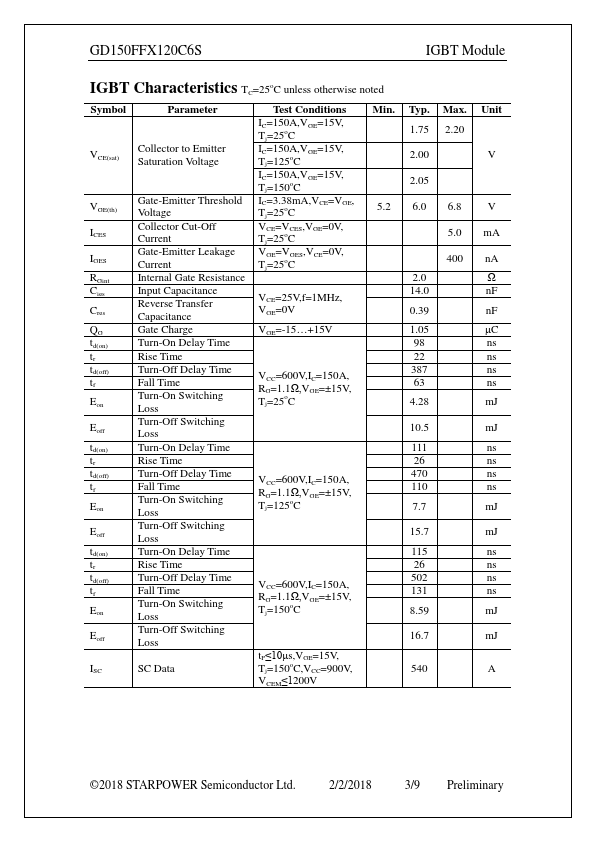

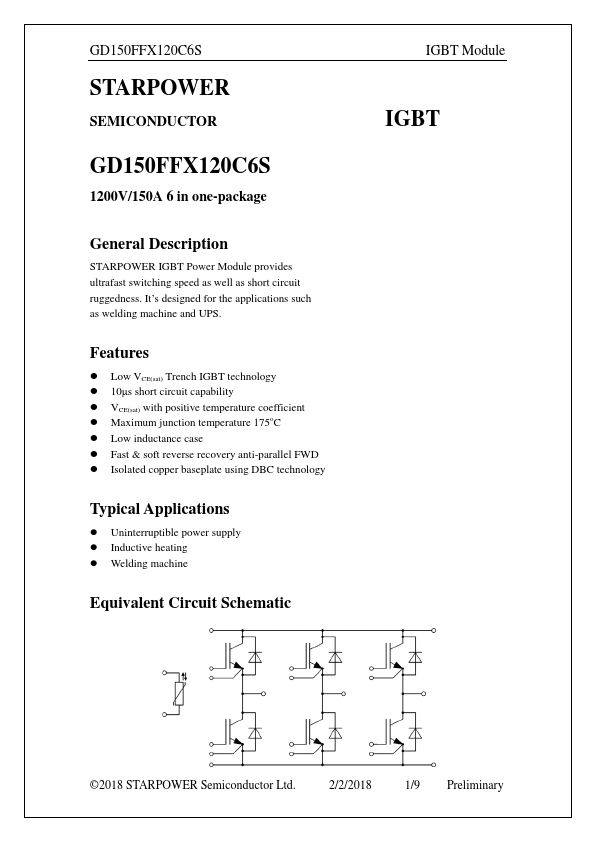

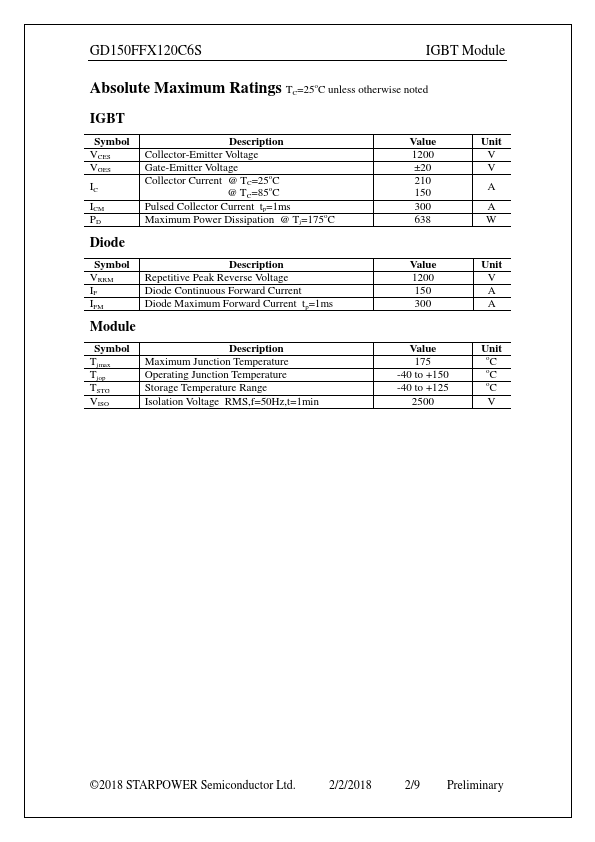

Additional preview pages of the GD150FFX120C6S datasheet.

GD150FFX120C6S Product details

Description

STARPOWER IGBT Power Module provides ultrafast switching speed as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
