GD150FFT120C6S_T4 - IGBT

STARPOWER

The GD150FFT120C6S_T4 by STARPOWER is a IGBT. Below is the official datasheet preview.

📥 Download Datasheet

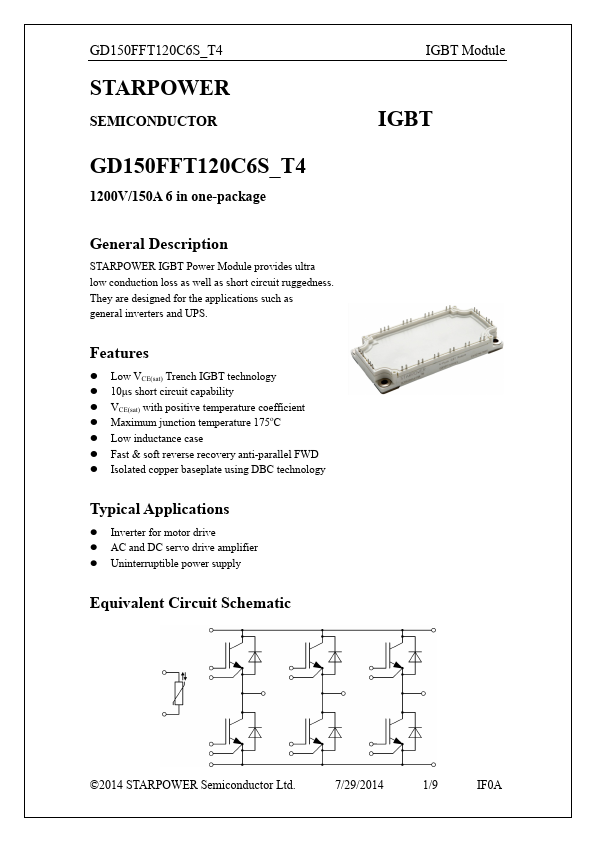

GD150FFT120C6S_T4 IGBT by STARPOWER - Datasheet Preview — Official preview page of the GD150FFT120C6S_T4 IGBT datasheet (STARPOWER).

Datasheet Details

Part number	GD150FFT120C6S_T4
Manufacturer	STARPOWER
File Size	482.77 KB
Description	IGBT
Datasheet	GD150FFT120C6S_T4-STARPOWER.pdf

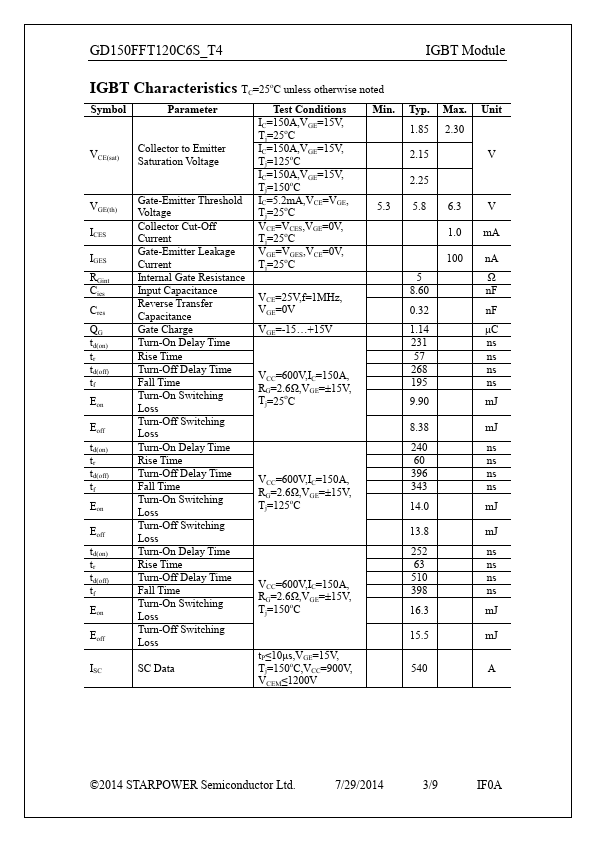

Additional preview pages of the GD150FFT120C6S_T4 datasheet.

GD150FFT120C6S_T4 Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.
