GD150FFA120C6S - IGBT

STARPOWER

The GD150FFA120C6S by STARPOWER is a IGBT. Below is the official datasheet preview.

📥 Download Datasheet

GD150FFA120C6S IGBT by STARPOWER - Datasheet Preview — Official preview page of the GD150FFA120C6S IGBT datasheet (STARPOWER).

Datasheet Details

Part number	GD150FFA120C6S
Manufacturer	STARPOWER
File Size	378.67 KB
Description	IGBT
Datasheet	GD150FFA120C6S-STARPOWER.pdf

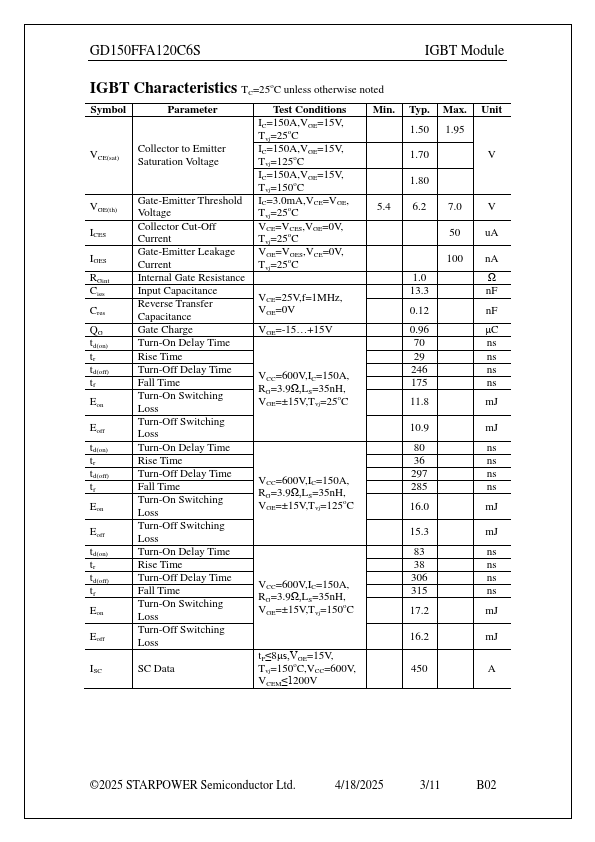

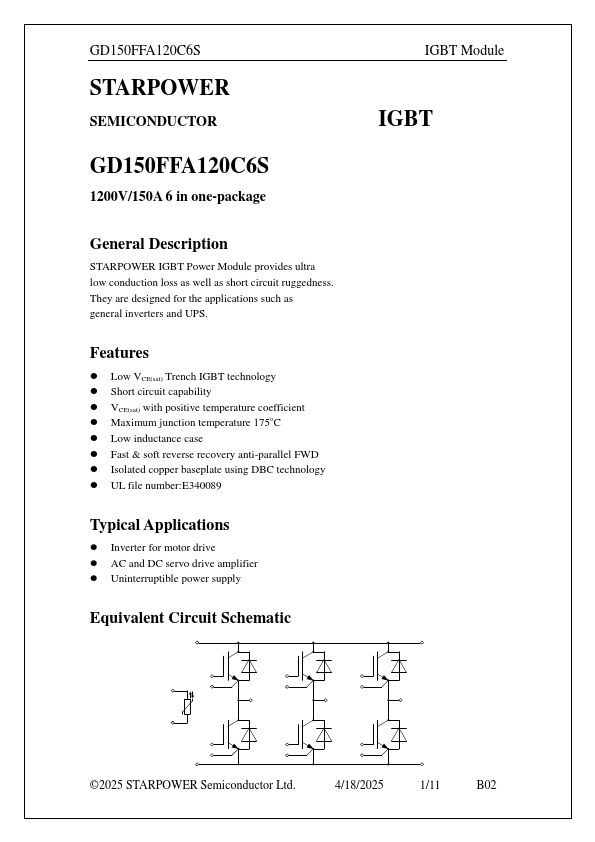

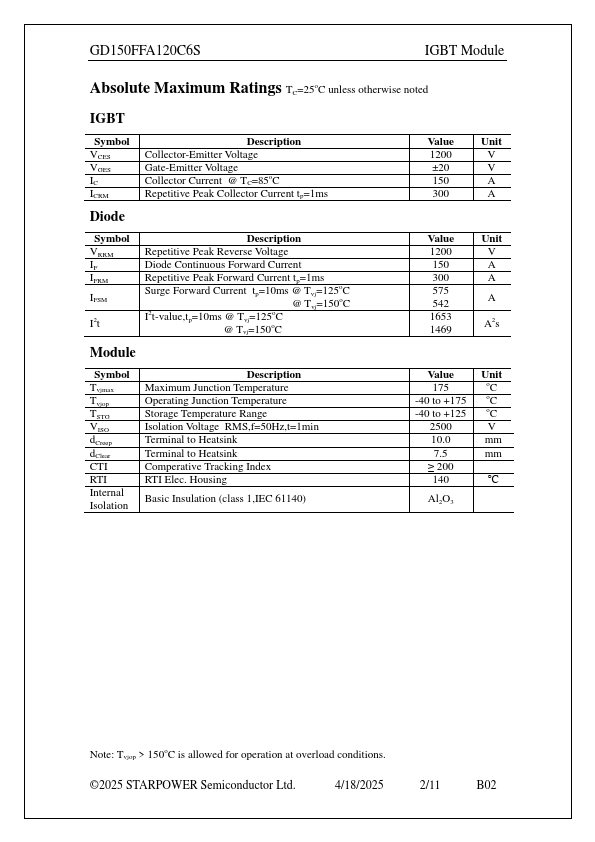

Additional preview pages of the GD150FFA120C6S datasheet.

GD150FFA120C6S Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
Short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology.
UL file number:E340089 Typical.
