STW14NC50 - N-CHANNEL POWER MOSFET

Description

The PowerMESH™II is the evolution of the first generation of MESH OVERLAY™.

area figure of merit while keeping the device at the leading edge for what concerns switching speed, gate charge and ruggedness.

📥 Download Datasheet

Datasheet preview – STW14NC50

Datasheet Details

Part number STW14NC50
Manufacturer STMicroelectronics
File Size 205.15 KB
Description N-CHANNEL POWER MOSFET
Datasheet download datasheet STW14NC50 Datasheet
Additional preview pages of the STW14NC50 datasheet.

📁 Similar Datasheet

  • STW14NM65N - N-channel Power MOSFET (STMicroelectronics)
  • STW10N105K5 - N-channel Power MOSFET (STMicroelectronics)
  • STW10N95K5 - N-channel Power MOSFET (STMicroelectronics)
  • STW12N120K5 - N-channel 1200V 12A Power MOSFET (STMicroelectronics)
  • STW12N150K5 - N-channel Power MOSFET (STMicroelectronics)
  • STW12N170K5 - N-channel Power MOSFET (STMicroelectronics)
  • STW12NK60Z - N-CHANNEL MOSFET (STMicroelectronics)
  • STW12NK95Z - N-channel Power MOSFET (STMicroelectronics)
  • STW12NK95Z - N-Channel 900V Power MOSFET (VBsemi)
  • STW12NM60N - N-channel Power MOSFET (STMicroelectronics)
Other Datasheets by ST Microelectronics

Full PDF Text Transcription

Click to expand full text

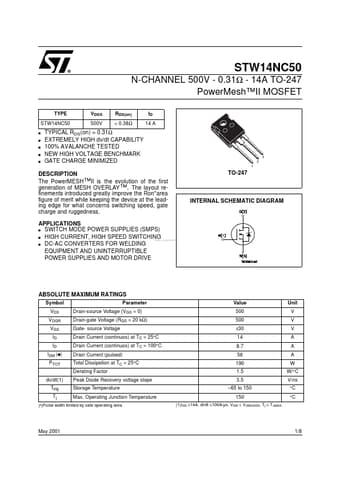

N-CHANNEL 500V - 0.31Ω - 14A TO-247 PowerMesh™II MOSFET TYPE STW14NC50 s s s s s STW14NC50 VDSS 500V RDS(on) < 0.38Ω ID 14 A TYPICAL RDS(on) = 0.31Ω EXTREMELY HIGH dv/dt CAPABILITY 100% AVALANCHE TESTED NEW HIGH VOLTAGE BENCHMARK GATE CHARGE MINIMIZED 1 3 2 DESCRIPTION The PowerMESH™II is the evolution of the first generation of MESH OVERLAY™. The layout refinements introduced greatly improve the Ron*area figure of merit while keeping the device at the leading edge for what concerns switching speed, gate charge and ruggedness. APPLICATIONS SWITCH MODE POWER SUPPLIES (SMPS) s HIGH CURRENT, HIGH SPEED SWITCHING www.DataSheet4U.
