STTA812, TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE

® STTA812D/DI/G TURBOSWITCH ™ ULTRA-FAST HIGH VOLTAGE DIODE MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM trr (typ) VF (max) 8A 1200V 50ns A A K K 2.0V.
TURBOSWITCH 1200V drastically cuts losses in all high voltage operationswhich require extremely fast, soft and noise-free power diodes.

STTA812_STMicroelectronics.pdf

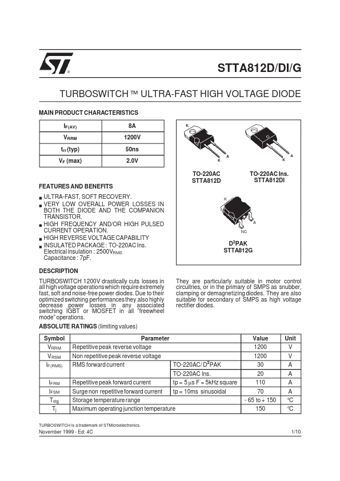

STTA812 Datasheet Preview — Preview of STTA812 PDF

Datasheet Details

Part number:

STTA812

Manufacturer:

STMicroelectronics ↗

File Size:

91.29 KB

Description:

TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE

Applications

* (Fig A to D),the way of calculating the power losses is given below: TOTAL LOSSES due to the diode P = P1+ P2+ P3+ P4+ P5 Watts CONDUCTION LOSSES in the diode REVERSE LOSSES in the diode SWITCHING LOSSES in the diode SWITCHING LOSSES in the tansistor due to the diode Fig. A: ”FREEWHEEL” MODE.
