STTA1206D Ultrafast Rectifier

STTA1206D Description

Ultra fast Rectifier .

STTA1206D Features

* With TO-220 packaging
* Metal silicon junction, majority carrier conduction
* Low power loss, high efficiency
* Guardring for overvoltage protection
* High surge capability

STTA1206D Applications

* Switching power supply
* High frequency inverters
* Reverse battery protection
* Polarity protection applications STTA1206D ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VRRM VRMS VR IFRM Peak Repetitive Reverse Voltage RMS Voltage DC Blocking Voltage Repetitive Peak Forward

📥 Download Datasheet

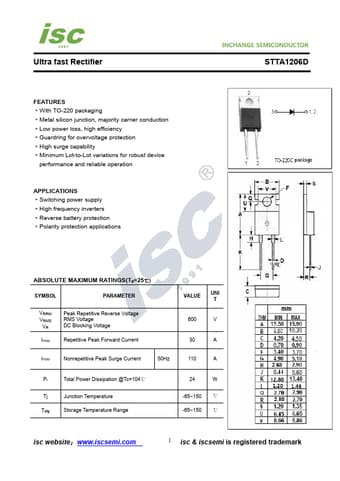

Preview of STTA1206D PDF
datasheet Preview Page 2

Datasheet Details

Part number
STTA1206D
Manufacturer
INCHANGE
File Size
236.23 KB
Datasheet
STTA1206D-INCHANGE.pdf
Description
Ultrafast Rectifier
