STTA1212D, TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE

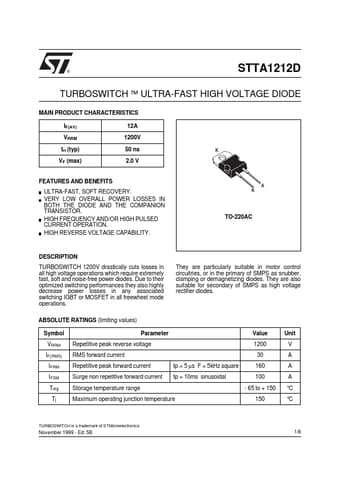

® STTA1212D TURBOSWITCH ™ ULTRA-FAST HIGH VOLTAGE DIODE MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM trr (typ) VF (max) 12A 1200V 50 ns 2.0 V K .
TURBOSWITCH 1200V drastically cuts losses in all high voltage operations which require extremely fast, soft and noise-free power diodes.

STTA1212D_STMicroelectronics.pdf

STTA1212D Datasheet Preview — Preview of STTA1212D PDF

Datasheet Details

Part number:

STTA1212D

Manufacturer:

STMicroelectronics ↗

File Size:

185.71 KB

Description:

TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE

Applications

* (Fig A to D),the way of calculating the power losses is given below : TOTAL LOSSES due to the diode P = P1+ P2+ P3+ P4+ P5 Watts CONDUCTION LOSSES in the diode REVERSE LOSSES in the diode SWITCHING LOSSES in the diode SWITCHING LOSSES in the tansistor due to the diode Fig. A : "FREEWHEEL" MOD
