STTA1206DI, STTA1206D TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE

STTA1206DI Description

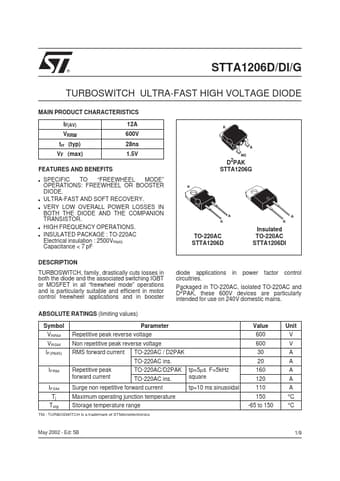

® STTA1206D/DI/G TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM trr (typ) VF (max) 12A 600V 28ns 1.5V .
TURBOSWITCH, family, drastically cuts losses in both the diode and the associated switching IGBT or MOSFET in all “freewheel mode” operations and is p.

STTA1206DI Features

* s SPECIFIC TO “FREEWHEEL MODE” OPERATIONS: FREEWHEEL OR BOOSTER DIODE. s ULTRA-FAST AND SOFT RECOVERY. s VERY LOW OVERALL POWER LOSSES IN BOTH THE DIODE AND THE COMPANION TRANSISTOR. s HIGH FREQUENCY OPERATIONS. s INSULATED PACKAGE : TO-220AC Electrical insulation : 2500VRMS Capacitance < 7 pF K A

STTA1206DI Applications

* and in booster diode applications in power factor control circuitries. Packaged in TO-220AC, isolated TO-220AC and D2PAK, these 600V devices are particularly intended for use on 240V domestic mains. ABSOLUTE RATINGS (limiting values) Symbol Parameter VRRM Repetitive peak reverse voltage VRSM N
