STTA512F - Ultra fast Rectifier

Features

  • High reverse voltage capability.
  • Low switching loss.
  • High surge current capability.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

Datasheet preview – STTA512F

Datasheet Details

Part number STTA512F
Manufacturer Inchange Semiconductor
File Size 216.86 KB
Description Ultra fast Rectifier
Datasheet download datasheet STTA512F Datasheet
Additional preview pages of the STTA512F datasheet.

📁 Similar Datasheet

  • STTA512F - (STTA512x) TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE (ST Microelectronics)
  • STTA512FP - (STTA512x) TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE (ST Microelectronics)
  • STTA512B - (STTA512x) TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE (ST Microelectronics)
  • STTA512D - (STTA512x) TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE (ST Microelectronics)
  • STTA5012TV1 - (STTAxxxx) TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE (ST Microelectronics)
  • STTA5012TV1 - (STTAxxxx) ULTRA-FAST HIGH VOLTAGE DIODE (ST Microelectronics)
  • STTA5012TV2 - (STTAxxxx) TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE (ST Microelectronics)
  • STTA5012TV2 - (STTAxxxx) ULTRA-FAST HIGH VOLTAGE DIODE (ST Microelectronics)
  • STTA506B - (STTA506x) TURBOSWITCH E ULTRA-FAST HIGH VOLTAGE DIODE (ST Microelectronics)
  • STTA506D - (STTA506x) TURBOSWITCH E ULTRA-FAST HIGH VOLTAGE DIODE (ST Microelectronics)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text

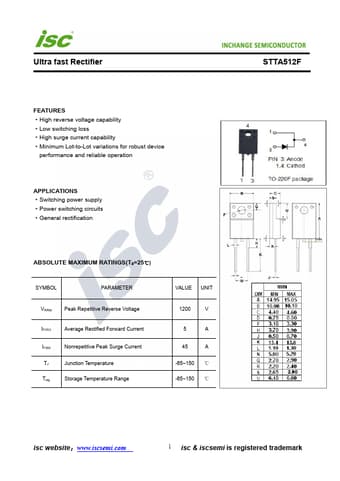

Ultra fast Rectifier FEATURES ·High reverse voltage capability ·Low switching loss ·High surge current capability ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Switching power supply ·Power switching circuits ·General rectification ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VRRM Peak Repetitive Reverse Voltage IF(AV) Average Rectified Forward Current IFSM Nonrepetitive Peak Surge Current TJ Junction Temperature Tstg Storage Temperature Range VALUE UNIT 1200 V 5 A 45 A -65~150 ℃ -65~150 ℃ STTA512F 1mm 1mm isc website：www.iscsemi.com 1 isc & iscsemi is registered trademark Ultra fast Rectifier THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Thermal Resistance,Junction to Case STTA512F MAX 4.
