STTA806DI, STTA806 TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE

STTA806DI Description

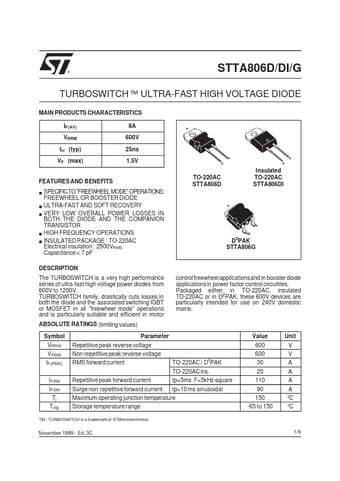

® STTA806D/DI/G TURBOSWITCH ™ ULTRA-FAST HIGH VOLTAGE DIODE MAIN PRODUCTS CHARACTERISTICS IF(AV) VRRM trr (typ) VF (max) 8A 600V 25ns 1.5V FEATUR.
The TURBOSWITCH is a very high performance series of ultra-fast high voltage power diodes from 600V to 1200V.

STTA806DI Features

* SPECIFICTO”FREEWHEEL MODE” OPERATIONS: FREEWHEEL OR BOOSTER DIODE ULTRA-FAST AND SOFT RECOVERY VERY LOW OVERALL POWER LOSSES IN BOTH THE DIODE AND THE COMPANION TRANSISTOR HIGH FREQUENCY OPERATIONS INSULATED PACKAGE : TO-220AC Electrical insulation : 2500VRMS Capacitance < 7 pF K A K TO-220AC STTA

STTA806DI Applications

* nd in booster diode applications in power factor control circuitries. Packaged either in TO-220AC, insulated TO-220AC or in D2PAK, these 600V devices are particularly intended for use on 240V domestic mains. Symbol VRRM VRSM IF(RMS) IFRM IFSM Tj Tstg Parameter Repetitive peak reverse voltage Non
