STTA512F, STTA512B, (STTA512x) TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE

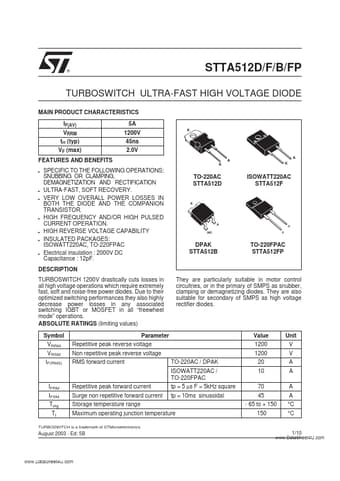

( DataSheet : www.DataSheet4U.com ) ® STTA512D/F/B/FP TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM trr (typ) .
TURBOSWITCH 1200V drastically cuts losses in all high voltage operations which require extremely fast, soft and noise-free power diodes.

STTA512B_STMicroelectronics.pdf

STTA512F Datasheet Preview — This datasheet PDF includes multiple part numbers: STTA512F, STTA512B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

STTA512F, STTA512B

Manufacturer:

STMicroelectronics ↗

File Size:

198.10 KB

Description:

(STTA512x) TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE

Note:

This datasheet PDF includes multiple part numbers: STTA512F, STTA512B.
Please refer to the document for exact specifications by model.

Features

* n 5A 1200V 45ns 2.0V A K A K K n n n n n n SPECIFIC TO THE FOLLOWING OPERATIONS: SNUBBING OR CLAMPING, DEMAGNETIZATION AND RECTIFICATION ULTRA-FAST, SOFT RECOVERY. VERY LOW OVERALL POWER LOSSES IN BOTH THE DIODE AND THE COMPANION TRANSISTOR. HIGH FREQUENCY AND/OR HIGH PULSED CURRENT OPERATION

Applications

* (Fig A to D),the way of calculating the power losses is given below : TOTAL LOSSES due to the diode P = P1+ P2+ P3+ P4+ P5 Watts CONDUCTION LOSSES in the diode REVERSE LOSSES in the diode SWITCHING LOSSES in the diode SWITCHING LOSSES in the tansistor due to the diode Fig. A : “FREEWHEEL” MOD
