STTA512D, STTA512B (STTA512x) TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE

STTA512D Description

( DataSheet : www.DataSheet4U.com ) ® STTA512D/F/B/FP TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM trr (typ) .
TURBOSWITCH 1200V drastically cuts losses in all high voltage operations which require extremely fast, soft and noise-free power diodes.

STTA512D Features

* n 5A 1200V 45ns 2.0V A K A K K n n n n n n SPECIFIC TO THE FOLLOWING OPERATIONS: SNUBBING OR CLAMPING, DEMAGNETIZATION AND RECTIFICATION ULTRA-FAST, SOFT RECOVERY. VERY LOW OVERALL POWER LOSSES IN BOTH THE DIODE AND THE COMPANION TRANSISTOR. HIGH FREQUENCY AND/OR HIGH PULSED CURRENT OPERATION

STTA512D Applications

* (Fig A to D),the way of calculating the power losses is given below : TOTAL LOSSES due to the diode P = P1+ P2+ P3+ P4+ P5 Watts CONDUCTION LOSSES in the diode REVERSE LOSSES in the diode SWITCHING LOSSES in the diode SWITCHING LOSSES in the tansistor due to the diode Fig. A : “FREEWHEEL” MOD

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STTA512D, STTA512B. Please refer to the document for exact specifications by model.

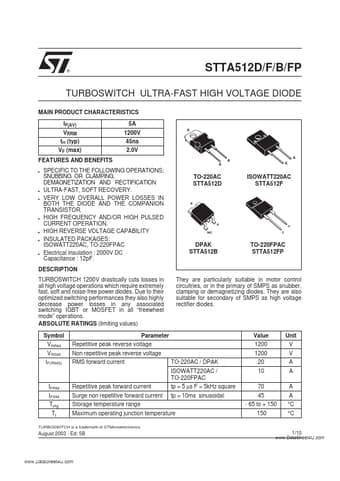

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STTA512D, STTA512B
Manufacturer
STMicroelectronics ↗
File Size
198.10 KB
Datasheet
STTA512B_STMicroelectronics.pdf
Description
(STTA512x) TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE
Note
This datasheet PDF includes multiple part numbers: STTA512D, STTA512B.
Please refer to the document for exact specifications by model.
