STS8DNH3LL - Dual N-CHANNEL Power MOSFET

Description

This application specific MOSFET is the Third generation of STMicroelectronis unique "Single Feature Size™" strip-based process.

The resulting transistor shows the best trade-off between on-resistance and gate charge.

📥 Download Datasheet

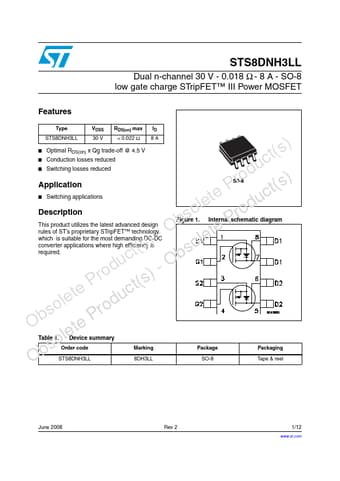

Datasheet preview – STS8DNH3LL

Datasheet Details

Part number STS8DNH3LL
Manufacturer STMicroelectronics
File Size 318.66 KB
Description Dual N-CHANNEL Power MOSFET
Datasheet download datasheet STS8DNH3LL Datasheet
Additional preview pages of the STS8DNH3LL datasheet.

📁 Similar Datasheet

  • STS8DN3LLH5 - Power MOSFETs (STMicroelectronics)
  • STS8DN6LF6AG - Automotive-grade dual N-channel Power MOSFET (STMicroelectronics)
  • STS8050 - NPN Silicon Transistor (AUK)
  • STS8201 - Dual N-Channel E nhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STS8202 - Dual N-Channel MOSFET (SamHop Microelectronics)
  • STS8205 - Dual N-Channel E nhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STS8207 - Dual N-Channel MOSFET (SamHop Microelectronics)
  • STS8208 - Dual N-Channel E nhancement Mode Field Effect Transistor (SamHop Microelectronics)
  • STS8212 - Dual N-Channel Enhancement Mode Field Effect Transistor (SamHop)
  • STS8213 - Dual N-Channel Enhancement Mode Field Effect Transistor (SamHop)
Other Datasheets by ST Microelectronics

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com STS8DNH3LL DUAL N-CHANNEL 30V - 0.018 Ω - 8A SO-8 LOW GATE CHARGE STripFET™ III POWER MOSFET TYPE STS8DNH3LL ■ ■ ■ ■ VDSS 30 V RDS(on) <0.022 Ω ID 8A TYPICAL RDS(on) = 0.018Ω OPTIMAL RDS(on) x Qg TRADE-OFF @ 4.5V CONDUCTION LOSSES REDUCED SWITCHING LOSSES REDUCED DESCRIPTION This application specific MOSFET is the Third generation of STMicroelectronis unique "Single Feature Size™" strip-based process. The resulting transistor shows the best trade-off between on-resistance and gate charge. When used as high and low side in buck regulators, it gives the best performance in terms of both conduction and switching losses. This is extremely important for motherboards where fast switching and high efficiency are of paramount importance.
