STS1NC60 N-CHANNEL PowerMESH MOSFET

STS1NC60 Description

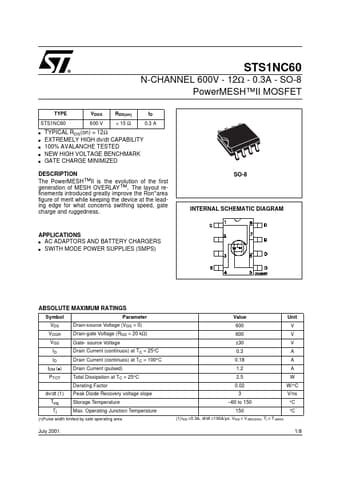

N-CHANNEL 600V - 12Ω - 0.3A - SO-8 PowerMESH™II MOSFET TYPE STS1NC60 s s s s s STS1NC60 VDSS 600 V RDS(on) < 15 Ω ID 0.3 A TYPICAL RDS(on) = 12Ω .
The PowerMESH™II is the evolution of the first generation of MESH OVERLAY™. area figure.

STS1NC60 Applications

* AC ADAPTORS AND BATTERY CHARGERS s SWITH MODE POWER SUPPLIES (SMPS) s ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (q ) PTOT dv/dt (1) Tstg Tj . Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain Current (continuos) at TC = 25°C Drain Cur
