STPS30L45CG, Low drop power Schottky rectifier

STPS30L45C Low drop power Schottky rectifier .
Dual center tap Schottky rectifier suited for switched mode power supplies and high frequency DC to DC converters.

STPS30L45CG_STMicroelectronics.pdf

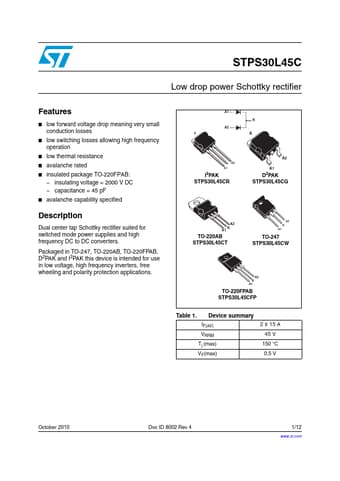

STPS30L45CG Datasheet Preview — Preview of STPS30L45CG PDF

Datasheet Details

Part number:

STPS30L45CG

Manufacturer:

STMicroelectronics ↗

File Size:

139.05 KB

Description:

Low drop power Schottky rectifier

Features

* low forward voltage drop meaning very small conduction losses
* low switching losses allowing high frequency operation
* low thermal resistance
* avalanche rated
* insulated package TO-220FPAB:
* insulating voltage = 2000 V DC
* capacitance = 45 pF
* avalanc

Applications

* A1 K A2 K K A2 A1 I2PAK STPS30L45CR A2 A1 D2PAK STPS30L45CG A2 A1 K TO-220AB STPS30L45CT A2 K A1 TO-247 STPS30L45CW A2 K A1 TO-220FPAB STPS30L45CFP Table 1. Device summary IF(AV) VRRM Tj (max) VF(max) 2 x 15 A 45 V 150 °C 0.5 V October 2010 Doc ID 8002 Rev 4 1/12 www. st. com 12 Cha
