STPS2045CG, STPS2045 POWER SCHOTTKY RECTIFIER

STPS2045CG Description

STPS2045C A1 K A2 K A2 K A1 TO-220AB K A2 K A1 TO-220FPAB K A2 A1 D²PAK A2 A1 .
Dual center tap Schottky rectifier suited for switch mode power supply and high frequency DC to DC converters.

STPS2045CG Features

* Very small conduction losses
* Negligible switching losses
* Extremely fast switching
* Insulated package: TO-220FPAB  Insulating voltage = 2000 VRMS sine
* Avalanche rated
* ECOPACK®2 compliant component for D²PAK on demand Power Schottky rectifier Datasheet - productio

STPS2045CG Applications

* Table 1: Device summary Symbol Value IF(AV) VRRM VF (typ. ) Tj (max. ) 2 x 10 A 45 V 0.5 V 175 °C October 2016 DocID3506 Rev 10 This is information on a product in full production. 1/15 www. st. com Characteristics STPS2045C 1 Characteristics Table 2: Absolute ratings (limiting values, pe

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS2045CG, STPS2045. Please refer to the document for exact specifications by model.

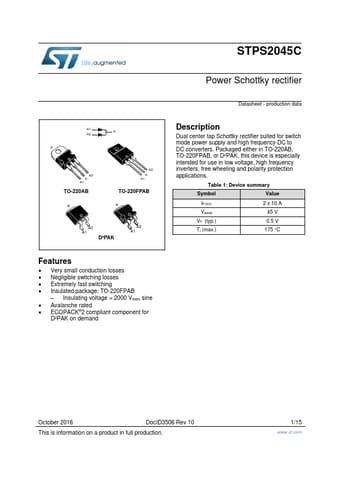

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS2045CG, STPS2045
Manufacturer
STMicroelectronics ↗
File Size
532.34 KB
Datasheet
STPS2045_STMicroelectronics.pdf
Description
POWER SCHOTTKY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: STPS2045CG, STPS2045.
Please refer to the document for exact specifications by model.
