STPS2045CF, STPS2045 POWER SCHOTTKY RECTIFIER

STPS2045CF Description

® STPS2045CT/CF/CG/CFP POWER SCHOTTKY RECTIFIER MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM Tj (max) VF (max) 2 x 10 A 45 V 175 °C 0.57 V A1 K A2 F.
Dual center tap Schottky rectifier suited for SwitchMode Power Supply and high frequency DC to DC converters.

STPS2045CF Applications

* A2 K A1 TO-220AB STPS2045CT K A2 K A1 ISOWATT220AB STPS2045CF A2 A1 D2PAK STPS2045CG A2 K A1 TO-220FPAB STPS2045CFP ABSOLUTE RATINGS (limiting values, per diode) Symbol Parameter Value Unit VRRM IF(RMS) IF(AV) Repetitive peak reverse voltage RMS forward current Average forward TO-220AB

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS2045CF, STPS2045. Please refer to the document for exact specifications by model.

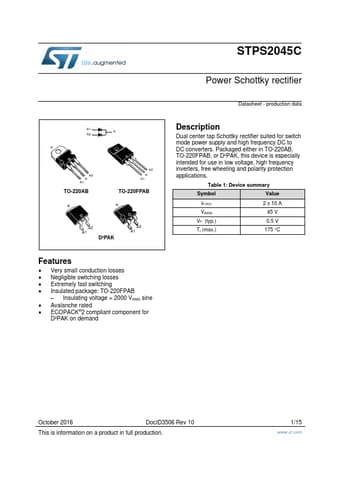

datasheet Preview Page 2 datasheet Preview Page 3
