STPS2045CH 45V power Schottky rectifier

STPS2045CH Description

STPS2045CH Datasheet 45 V power Schottky rectifier A1 K A2 A1 K A2 IPAK Product status link STPS2045CH Product summary IF(AV) 2 x 10 A VRRM 45 .
This dual-diode common cathode Schottky rectifier is ideal for high frequency switch mode power supply.

STPS2045CH Features

* Very small conduction losses
* Avalanche specification
* Low forward voltage drop
* High frequency operation

STPS2045CH Applications

* DC/DC converter
* Battery charger
* SMPS
* Desktop power

📥 Download Datasheet

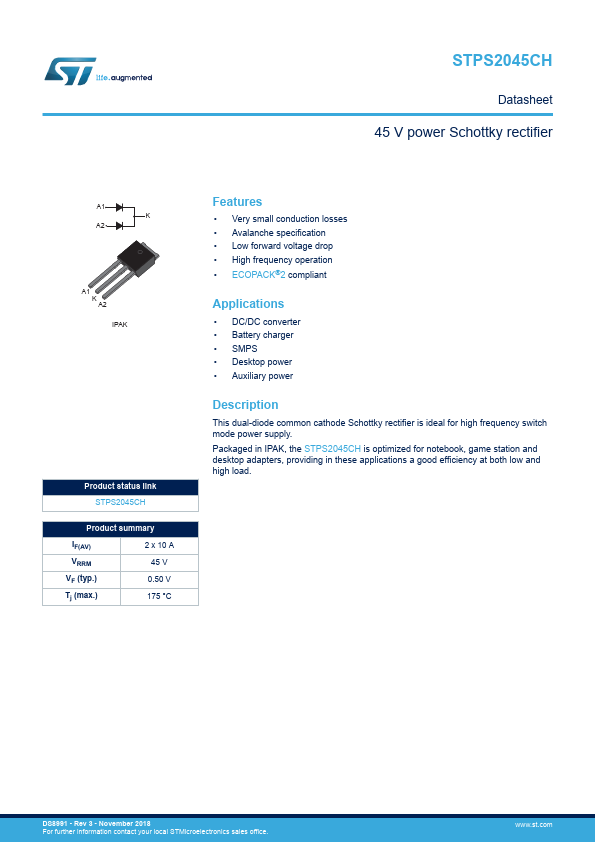

Preview of STPS2045CH PDF

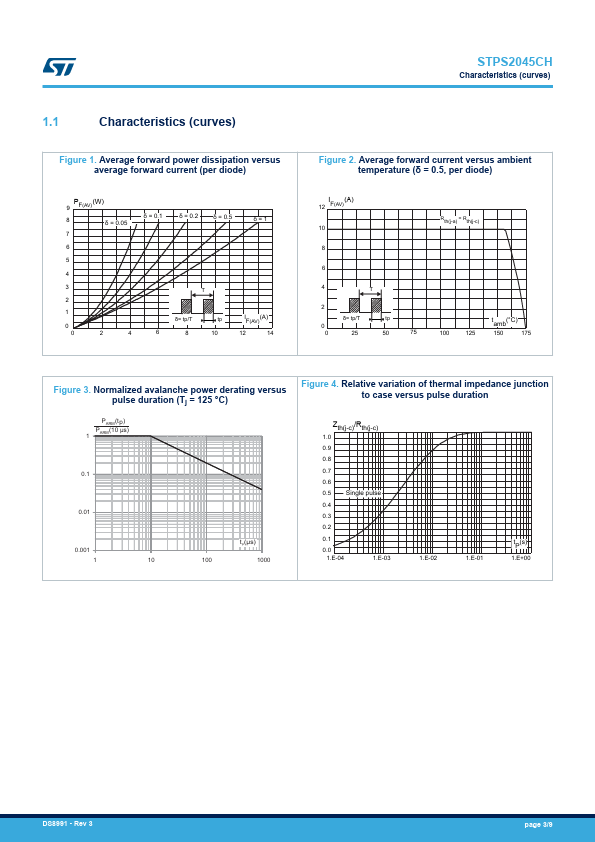

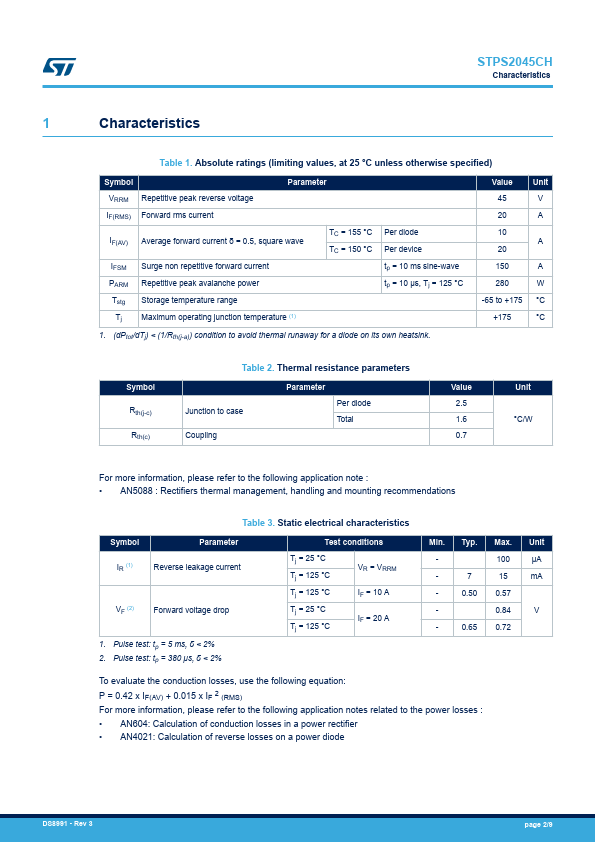

datasheet Preview Page 2 datasheet Preview Page 3
