STB140NF75-1 - N-CHANNEL POWER MOSFET

Download the STB140NF75-1 datasheet PDF (STB140NF75 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for n-channel power mosfet.

Description

This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process.

Features

  • Type STB140NF75 STB140NF75-1 STP140NF75 VDSS 75V 75V 75V RDS(on).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (STB140NF75_STMicroelectronics.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by ST Microelectronics

Full PDF Text Transcription

Click to expand full text

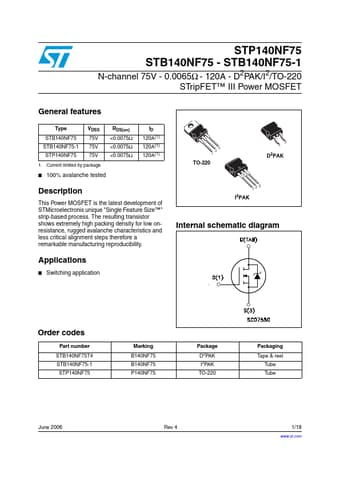

STP140NF75 STB140NF75 - STB140NF75-1 N-channel 75V - 0.0065Ω - 120A - D2PAK/I2/TO-220 STripFET™ III Power MOSFET General features Type STB140NF75 STB140NF75-1 STP140NF75 VDSS 75V 75V 75V RDS(on) <0.0075Ω <0.0075Ω <0.0075Ω ID 120A(1) 120A(1) 120A(1) TO-220 1 2 3 3 1 D2PAK 1. Current limited by package ■ 100% avalanche tested 3 12 Description This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process. The resulting transistor shows extremely high packing density for low onInternal resistance, rugged avalanche characteristics and less critical alignment steps therefore a www.DataSheet4U.com remarkable manufacturing reproducibility.
