M5913 - COMBINED SINGLE CHIP PCM CODEC AND FILTER

M5913 Description

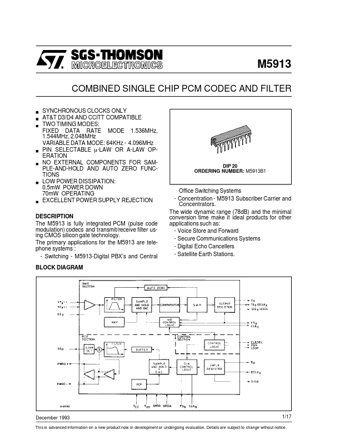

M5913 COMBINED SINGLE CHIP PCM CODEC AND FILTER SYNCHRONOUS CLOCKS ONLY AT&T D3/D4 AND CCITT COMPATIBLE TWO TIMING MODES: FIXED DATA RATE MODE 1.536MH.
The M5913 is fully integrated PCM (pulse code modulation) codecs and transmit/receive filter using CMOS silicon gate technology.

M5913 Features

* The combo-chip can be powered up by pulsing FSX and/or FSR while a TTL high voltage is applied to PDN, provided that all clocks and supplies are connected. The M5913 has internal resets on power up (or when VBB or VCC are re-applied) in order to ensure validity of the digital outputs and thereby mai

M5913 Applications

* for the M5913 are telephone systems : - Switching - M5913-Digital PBX’s and Central BLOCK DIAGRAM DIP 20 ORDERING NUMBER: M5913B1 Office Switching Systems - Concentration - M5913 Subscriber Carrier and Concentrators. The wide dynamic range (78dB) and the minimal conversion time make it ideal produ
