M59BW102 - 1 Mbit 64Kb x16 / Burst Low Voltage Flash Memory

Description

The M59BW102 is a non-volatile memory that may be erased electrically at the chip level and programmed in-system on a Word-by-Word basis using only a single 3V VCC supply.

For Program and Erase operations the necessary high voltages are generated internally.

Features

  • an interleaved access modality which allows extremely fast access time. The device is offered in TSOP40 (10 x 14mm) package. Figure 1. Logic Diagram VCC 16 A0-A15 W E G ALE M59BW102 16 DQ0-DQ15 VSS AI02763B March 2000 This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change without notice. 1/24 M59BW102 Figure 2. TSOP Connections Table 1. Signal Names A0-A15 DQ0-DQ7 Address Inputs Data Inputs/Outputs, Command Inputs Data.

📥 Download Datasheet

📁 Similar Datasheet

  • M5911 - N-Channel JFET Pairs (Siliconix)
  • M5912 - N-Channel JFET Pairs (Siliconix)
  • M59330P - LAN Transceiver (Renesas Technology)
  • M5938A - Very Ultra-Low On-Resistance Load Switch (Global Mixed-mode Technology)
  • M5938B - Very Ultra-Low On-Resistance Load Switch (Global Mixed-mode Technology)
  • M5938C - Very Ultra-Low On-Resistance Load Switch (Global Mixed-mode Technology)
  • M59DR008E - 8 Mbit Low Voltage Flash Memory (STMicroelectronics)
  • M59DR008F - 8 Mbit Low Voltage Flash Memory (STMicroelectronics)
  • M59DR016C - 16 Mbit 1.8V Supply Flash Memory (STMicroelectronics)
  • M59DR016D - 16 Mbit 1.8V Supply Flash Memory (STMicroelectronics)
Other Datasheets by ST Microelectronics
  • M5913 - COMBINED SINGLE CHIP PCM CODEC AND FILTER
  • M59DR032A - 32 Mbit 2Mb x16 / Dual Bank / Page Low Voltage Flash Memory
  • M59DR032B - 32 Mbit 2Mb x16 / Dual Bank / Page Low Voltage Flash Memory
  • M59MR032C - 32 Mbit 2Mb x16 / Mux I/O / Dual Bank / Burst 1.8V Supply Flash Memory
  • M59MR032D - 32 Mbit 2Mb x16 / Mux I/O / Dual Bank / Burst 1.8V Supply Flash Memory
  • M59PW1282 - 128Mbit (two 64Mb / x16 / Uniform Block / LightFlash) 3V Supply / Multiple Memory Product

Full PDF Text Transcription

Click to expand full text

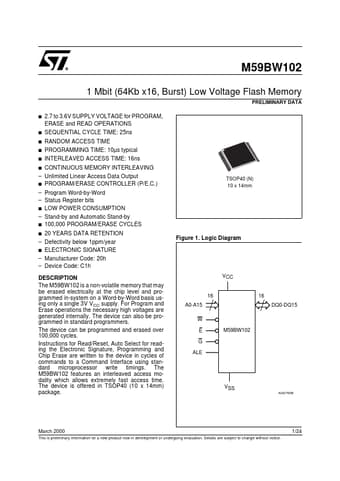

M59BW102 1 Mbit (64Kb x16, Burst) Low Voltage Flash Memory PRELIMINARY DATA s 2.7 to 3.6V SUPPLY VOLTAGE for PROGRAM, ERASE and READ OPERATIONS SEQUENTIAL CYCLE TIME: 25ns RANDOM ACCESS TIME PROGRAMMING TIME: 10µs typical INTERLEAVED ACCESS TIME: 16ns CONTINUOUS MEMORY INTERLEAVING TSOP40 (N) 10 x 14mm s s s s s – Unlimited Linear Access Data Output s PROGRAM/ERASE CONTROLLER (P/E.C.
