M5938A - Very Ultra-Low On-Resistance Load Switch

M5938A Description

Global Mixed-mode Technology M5938A/B/C Very Ultra-Low On-Resistance Load Switch .
The M5938A/B/C is a N-channel MOSFET power switch designed for high-side load-switching applications, and the device has a typical RDS(ON) of 5.

M5938A Features

* Integrated Single Channel Load Switch
* Input Voltage Range: 0.8V to 5.5V
* Ultra-low ON-Resistance M5938A = 5.5 mΩ M5938B = 11 mΩ M5938C = 22 mΩ
* Continuous Switch Current M5938A = 10A M5938B = 6A M5938C = 4A
* Low Threshold Control Inputs
* Adjust

M5938A Applications

* Notebooks / Netbooks
* Industrial Systems

📥 Download Datasheet

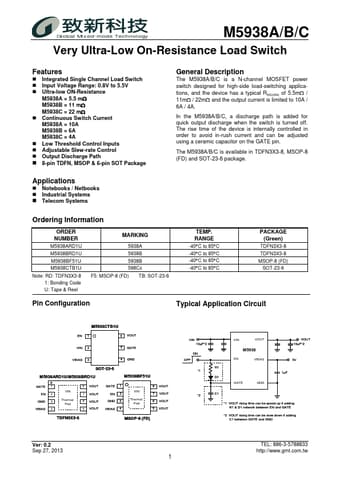

Preview of M5938A PDF

Datasheet Details

Part number
M5938A
Manufacturer
Global Mixed-mode Technology
File Size
40.27 KB
Datasheet
M5938A-GlobalMixedmodeTechnology.pdf
Description
Very Ultra-Low On-Resistance Load Switch
