| Part number | SM2100W, SM220W |
|---|---|
| Manufacturer | SPSEMI |
| File Size | 193.20 KB |
| Description | Surface Mount Schottky Barrier Rectifier |
| Datasheet |
 SM220W-SPSEMI.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: SM2100W, SM220W. Please refer to the document for exact specifications by model. |

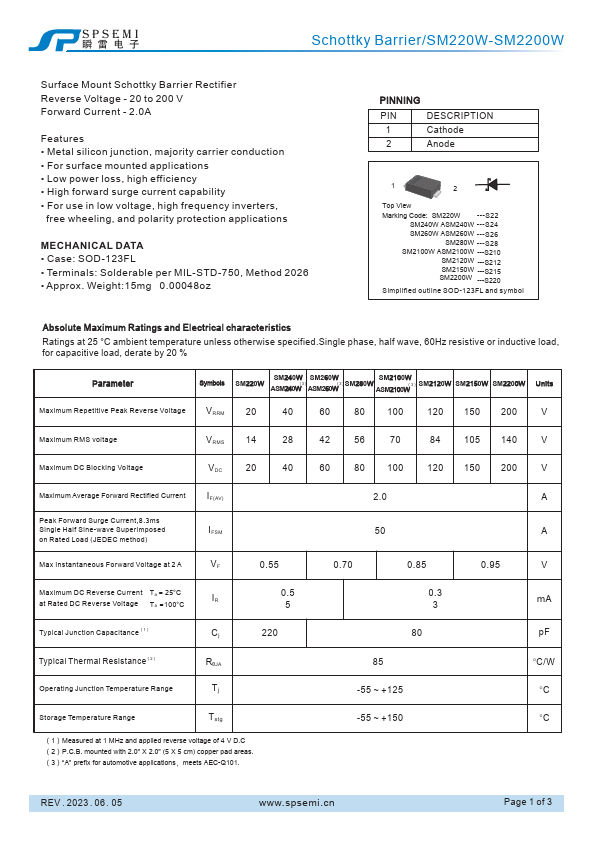

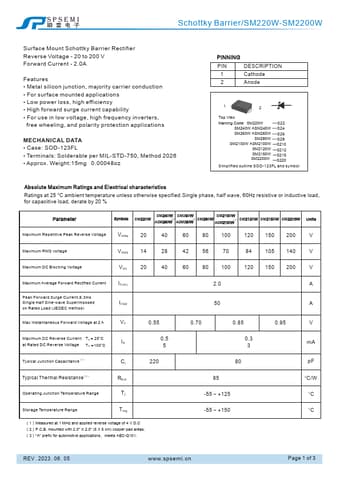

1 Cathode 2 Anode 1 2 Top View Marking Code: SM220W ---S22 SM240W ASM240W ---S24 SM260W ASM260W ---S26 SM280W ---S28 SM2100W ASM2100W ---S210 SM2120W ---S212 SM2150W ---S215 SM2200W ---S220 Simplified outline SOD-123FL and symbol Absolute Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase, half wave, 60Hz resistive or inductive load, for capacitive load, derate by 20 % Parameter Symbols SM240W SM260W SM2100W SM
