SM2100AF - Schottky Barrier Rectifiers

Download the SM2100AF datasheet PDF. This datasheet also covers the SM220AF variant, as both devices belong to the same schottky barrier rectifiers family and are provided as variant models within a single manufacturer datasheet.

Features

  • Ideal for surface mount.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SM220AF-SeCoS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SM2100AF
Manufacturer SeCoS
File Size 238.11 KB
Description Schottky Barrier Rectifiers
Datasheet download datasheet SM2100AF Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SM2100AF Schottky Barrier Rectifiers Leshan Radio Company
SM2100A Schottky Barrier Rectifiers Leshan Radio Company
SM2100A 2.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS GW
SM2100B 2.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS UNIOHM CORPORATION
SM2100B 2.0 AMP SURFACE MOUNT SCHOTTKY BARRIER RECTIFIERS GW

Other Datasheets by SeCoS

Part Number Description
SM2100A Surface Mount Schottky Barrier Rectifiers
SM2100AM 2.0 AMP Surface Mount Schottky Barrier Rectifiers
SM2100B 2.0 AMP Surface Mount Schottky Barrier Rectifiers
SM2100BM Schottky Barrier Rectifiers
SM2100FL Schottky Barrier Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

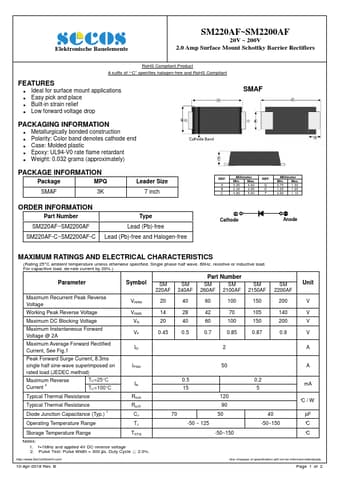

Elektronische Bauelemente SM220AF~SM2200AF 20V ~ 200V 2.0 Amp Surface Mount Schottky Barrier Rectifiers RoHS Compliant Product A suffix of “-C” specifies halogen-free and RoHS Compliant FEATURES Ideal for surface mount applications Easy pick and place Built-in strain relief Low forward voltage drop SMAF PACKAGING INFORMATION Metallurgically bonded construction Polarity: Color band denotes cathode end Case: Molded plastic Epoxy: UL94-V0 rate flame retardant Weight: 0.032 grams (approximately) PACKAGE INFORMATION Package MPQ SMAF 3K Leader Size 7 inch REF. A B C Millimeter Min. Max. 3.95 4.60 2.25 2.95 4.80 5.60 REF. D E F Millimeter Min. Max. 0.75 1.50 1.25 1.65 0.90 1.
