SM220W - Surface Mount Schottky Barrier Rectifier

SM220W Datasheet Preview — Preview of SM220W PDF

Datasheet Details

Part number	SM220W
Manufacturer	SPSEMI
File Size	193.20 KB
Description	Surface Mount Schottky Barrier Rectifier
Datasheet	SM220W-SPSEMI.pdf

SM220W Product details

Description

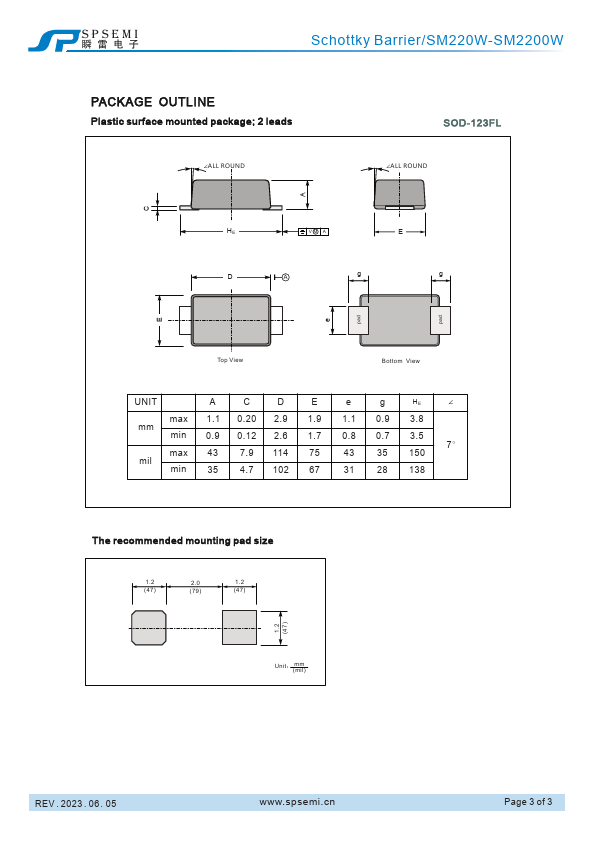

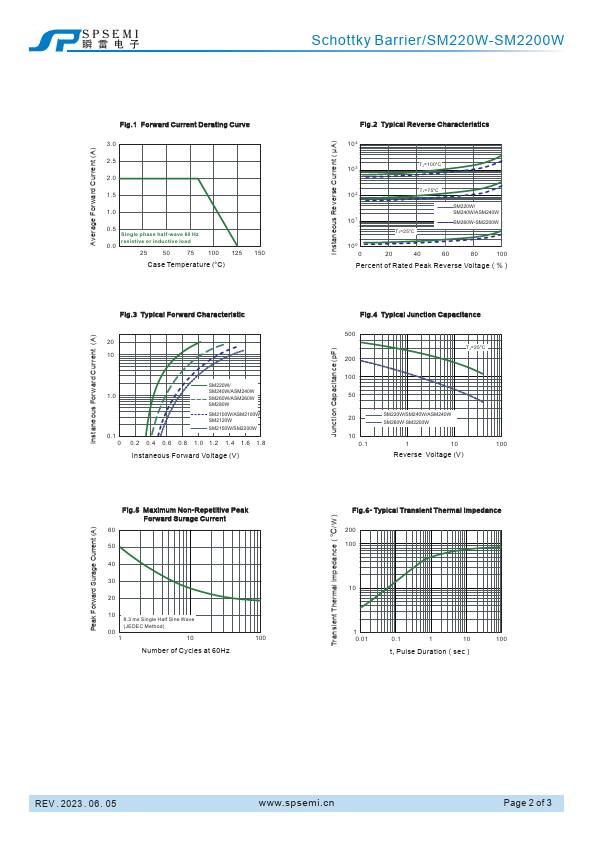

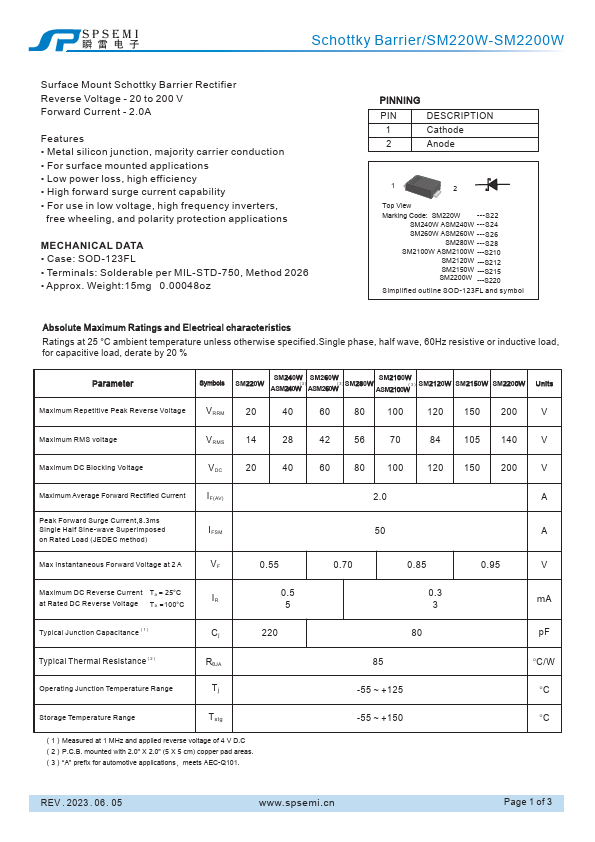

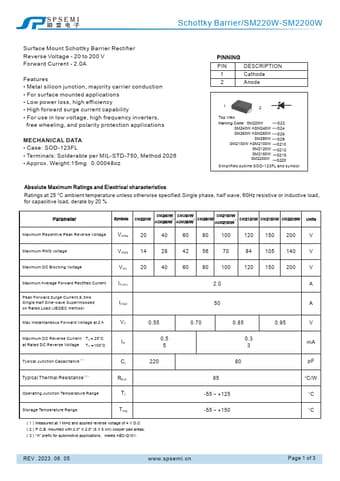

1 Cathode 2 Anode 1 2 Top View Marking Code: SM220W ---S22 SM240W ASM240W ---S24 SM260W ASM260W ---S26 SM280W ---S28 SM2100W ASM2100W ---S210 SM2120W ---S212 SM2150W ---S215 SM2200W ---S220 Simplified outline SOD-123FL and symbol Absolute Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase, half wave, 60Hz resistive or inductive load, for capacitive load, derate by 20 % Parameter Symbols SM240W SM260W SM2100W SM

Features

Metal silicon junction, majority carrier conduction.
For surface mounted.
