SM260W, SM220W - Surface Mount Schottky Barrier Rectifier

The SM260W by SPSEMI is a Surface Mount Schottky Barrier Rectifier. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the SM260W Surface Mount Schottky Barrier Rectifier datasheet (SPSEMI).

Datasheet Details

Part number SM260W, SM220W
Manufacturer SPSEMI
File Size 193.20 KB
Description Surface Mount Schottky Barrier Rectifier
Datasheet download datasheet SM220W-SPSEMI.pdf
Note This datasheet PDF includes multiple part numbers: SM260W, SM220W.
Please refer to the document for exact specifications by model.

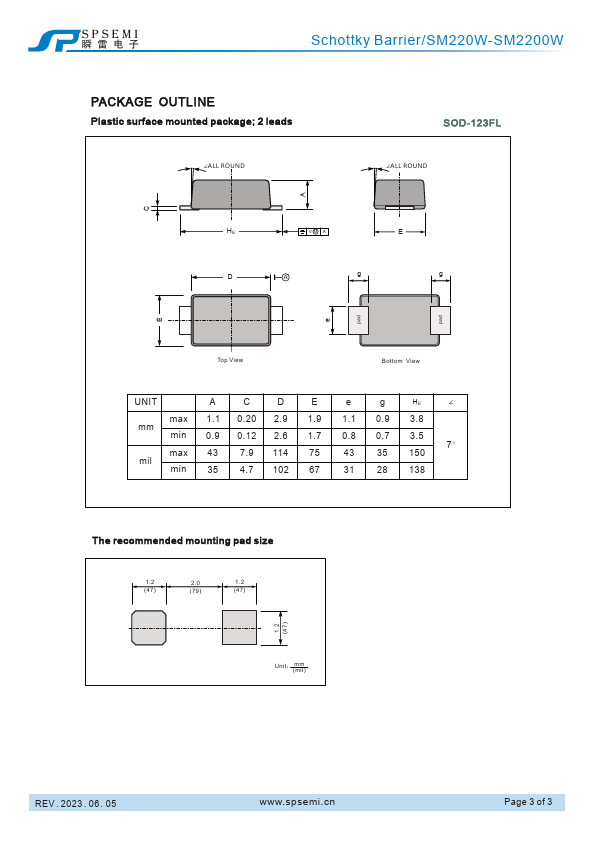

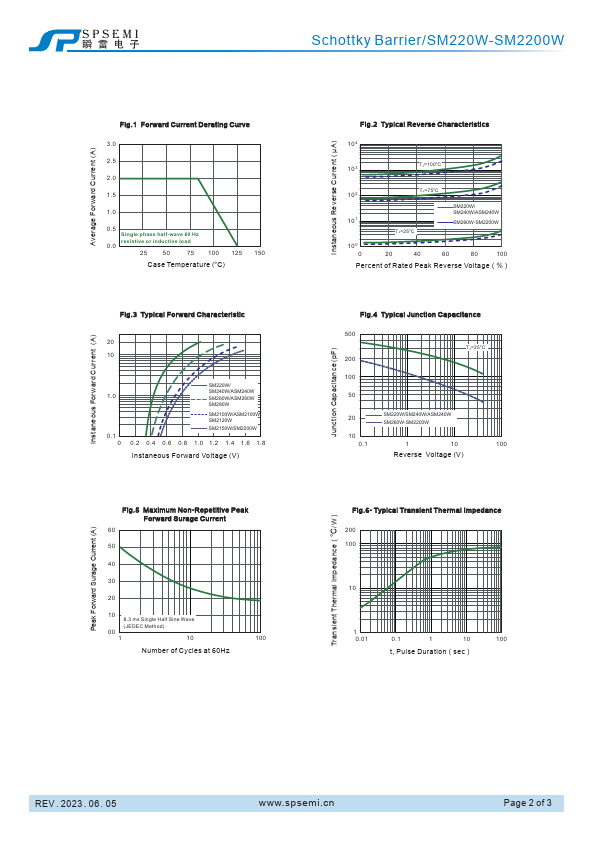

Additional preview pages of the SM260W datasheet.

SM260W Product details

Description

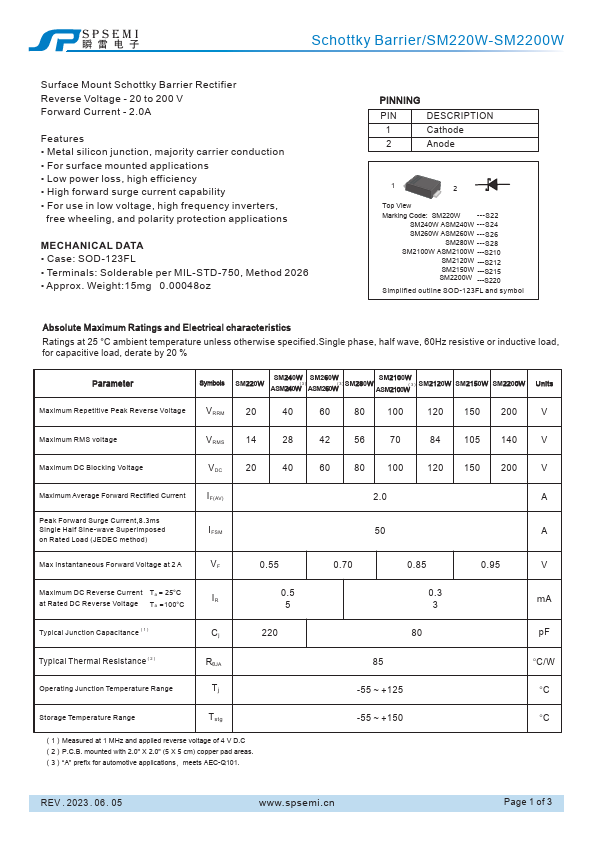

1 Cathode 2 Anode 1 2 Top View Marking Code: SM220W ---S22 SM240W ASM240W ---S24 SM260W ASM260W ---S26 SM280W ---S28 SM2100W ASM2100W ---S210 SM2120W ---S212 SM2150W ---S215 SM2200W ---S220 Simplified outline SOD-123FL and symbol Absolute Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase, half wave, 60Hz resistive or inductive load, for capacitive load, derate by 20 % Parameter Symbols SM240W SM260W SM2100W SM
