SIT1042A - 5Mbps CAN FD transceiver

📥 Download Datasheet

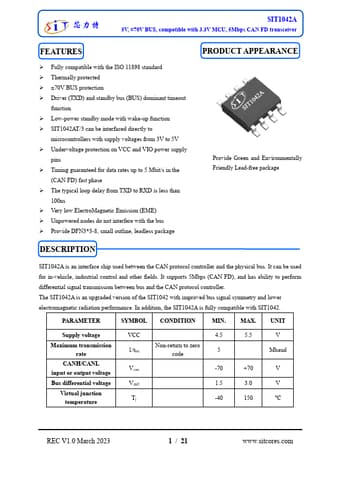

SIT1042A Datasheet Preview — Preview of SIT1042A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	SIT1042A
Manufacturer	SIT
File Size	2.86 MB
Description	5Mbps CAN FD transceiver
Datasheet	SIT1042A-SIT.pdf

SIT1042A Product details

Description

SIT1042A is an interface chip used between the CAN protocol controller and the physical bus.

Features

Fully compatible with the ISO 11898 standard.
Thermally protected.
±70V BUS protection.
Driver (TXD) and standby bus (BUS) dominant timeout function.
Low-power standby mode with wake-up function.
SIT1042AT/3 can be interfaced directly to microcontrollers with supply voltages from 3V to 5V.
Undervoltage protection on VCC and VIO power supply pins.
Timing guaranteed for data rates up to 5 Mbit/s in the (CAN FD) fast phase.
The typical loop delay from T.
