SW6N60 MOSFET

SW6N60 Description

SAMWIN SW6N60 N-channel MOSFET .
These N-channel enhancement mode power field effect transistors are produced using SAMWIN’s proprietary, planar stripe, DMOS technology.

SW6N60 Features

* TO-220F TO-251 TO-252
* High ruggedness
* RDS(ON) (Max 1.5Ω)@VGS=10V
* Gate Charge (Typical 29nC)
* Improved dv/dt Capability

📥 Download Datasheet

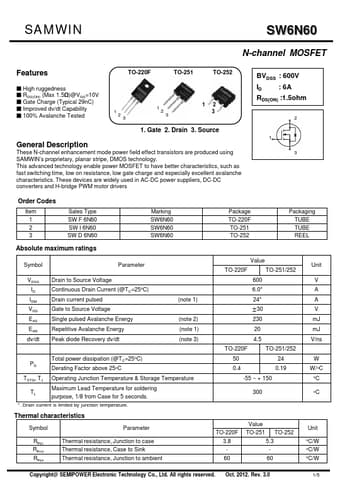

Preview of SW6N60 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SW6N60
Manufacturer
SEMIPOWER
File Size
484.48 KB
Datasheet
SW6N60-SAMWIN.pdf
Description
MOSFET
