SW6N60D N-channel MOSFET

SW6N60D Description

SW6N60D N-channel Enhanced mode TO-220F/TO-252/TO-251N MOSFET .
This power MOSFET is produced with advanced technology of SAMWIN.

SW6N60D Features

* TO-220F TO-252 TO-251N
* High ruggedness
* Low RDS(ON) (Typ 1.4Ω)@VGS=10V
* Low Gate Charge (Typ 23nC)
* Improved dv/dt Capability
* 100% Avalanche Tested

📥 Download Datasheet

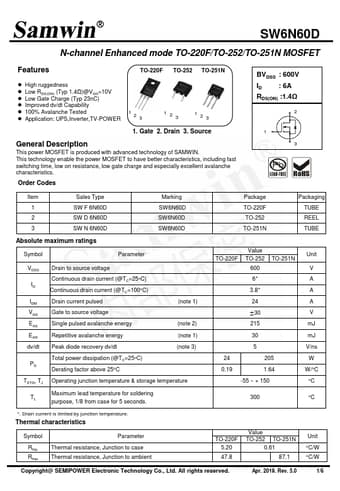

Preview of SW6N60D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SW6N60D
Manufacturer
Samwin
File Size
835.93 KB
Datasheet
SW6N60D-Samwin.pdf
Description
N-channel MOSFET
