SW6008 - 5V/3.1A Type-C Solution Power Bank

Datasheet Summary

Description

The SW6008 is a highly integrated power management IC for type-c power bank application, and supports A+B+C+L or A+A+B+C four ports.

It integrates 3A switching charger, 3.1A synchronous boost, fuel gauge, segment/led driver and power controller.

Features

  • Switching Charger.
  • Current up to 3A , Efficiency up to 96%.
  • Support 4.2/4.35/4.4/4.5V Battery Voltage.
  • Support JEITA.
  • Thermal Regulation.
  • Synchronous Boost.
  • Current up to 3.1A, Efficiency up to 95%.
  • Load Insert Detect and Light Load Detect.
  • Support Small Current Charge Mode.
  • Type-C Interface.
  • Support Type-C Specification.
  • Support try. SRC Role.
  • BC1.2 Module.
  • Support BC1.

📥 Download Datasheet

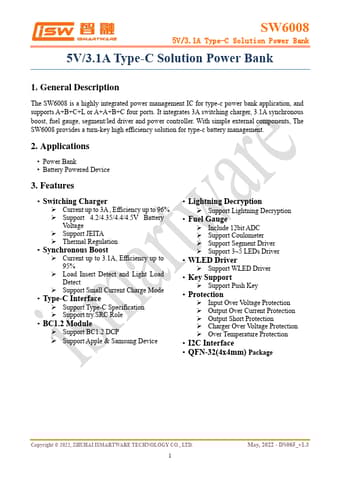

Datasheet preview – SW6008

Datasheet Details

Part number SW6008
Manufacturer ISMARTWARE
File Size 782.84 KB
Description 5V/3.1A Type-C Solution Power Bank
Datasheet download datasheet SW6008 Datasheet
Additional preview pages of the SW6008 datasheet.

📁 Similar Datasheet

  • SW601Q - N-Channel MOSFET (SEMIPOWER)
  • SW60N06T - MOSFET (SEMIPOWER)
  • SW6100 - BATTERY (SUNNYWAY)
  • SW630 - N-Channel MOSFET (Samwin)
  • SW630A - MOSFET (SEMIPOWER)
  • SW634 - N-Channel MOSFET (Samwin)
  • SW640 - N-Channel MOSFET (Samwin)
  • SW640 - Battery (Shenzhen)
  • SW65-0003 - GaAs SP8T Reflective Switch (Tyco Electronics)
  • SW65-0014 - GaAs SPST Absorptive Switch (Tyco Electronics)
Other Datasheets by ISMARTWARE
  • SW6005 - 5V/2.4A Type-C Solution Power Bank
  • SW608 - 5V 3A single-chip Type-C power bank solution
  • SW6106 - Bidirectional Fast Charge Power Bank
  • SW6201 - Total Solution Include PD
  • SW6206 - Bidirectional Fast Charge Power Bank
  • SW6208 - highly integrated power management
  • SW6236 - AACC Four-Port Multi-Protocol Portable Power Bank SOC
  • SW6301V - Single-C port multi-protocol step-up power bank SOC

Full PDF Text Transcription

Click to expand full text
SW6008 5V/3.1A Type-C Solution Power Bank 5V/3.1A Type-C Solution Power Bank 1. General Description The SW6008 is a highly integrated power management IC for type-c power bank application, and supports A+B+C+L or A+A+B+C four ports. It integrates 3A switching charger, 3.1A synchronous boost, fuel gauge, segment/led driver and power controller. With simple external components, The SW6008 provides a turn-key high efficiency solution for type-c battery management. 2. Applications • Power Bank • Battery Powered Device 3. Features • Switching Charger ➢ Current up to 3A , Efficiency up to 96% ➢ Support 4.2/4.35/4.4/4.5V Battery Voltage ➢ Support JEITA ➢ Thermal Regulation • Synchronous Boost ➢ Current up to 3.
