TP65H030G4PWS - 650V GaN FET

Renesas

📥 Download Datasheet

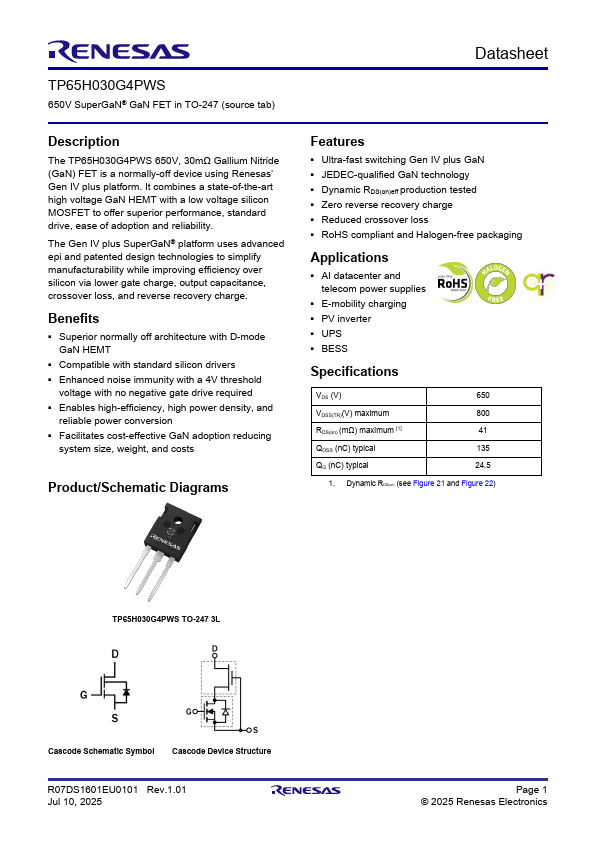

TP65H030G4PWS Datasheet Preview — Preview of TP65H030G4PWS PDF

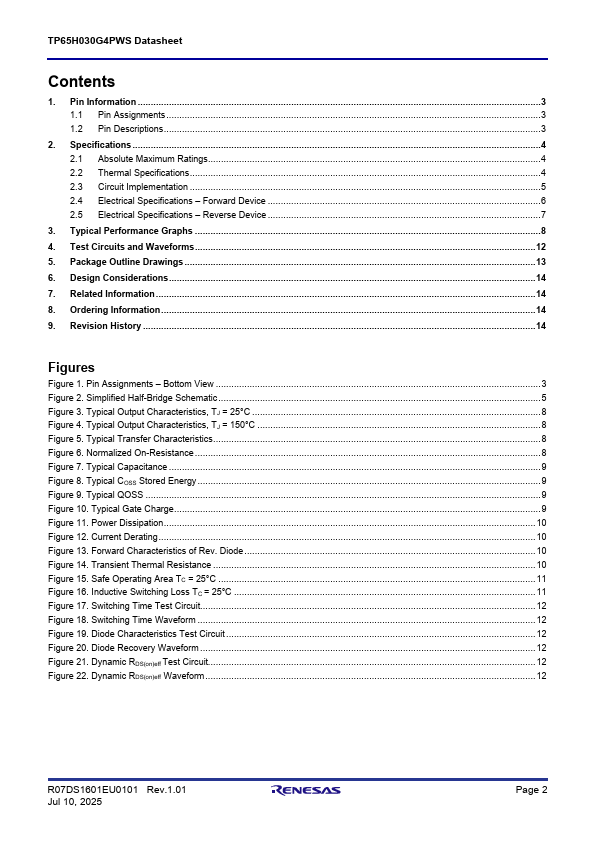

datasheet Preview Page 2

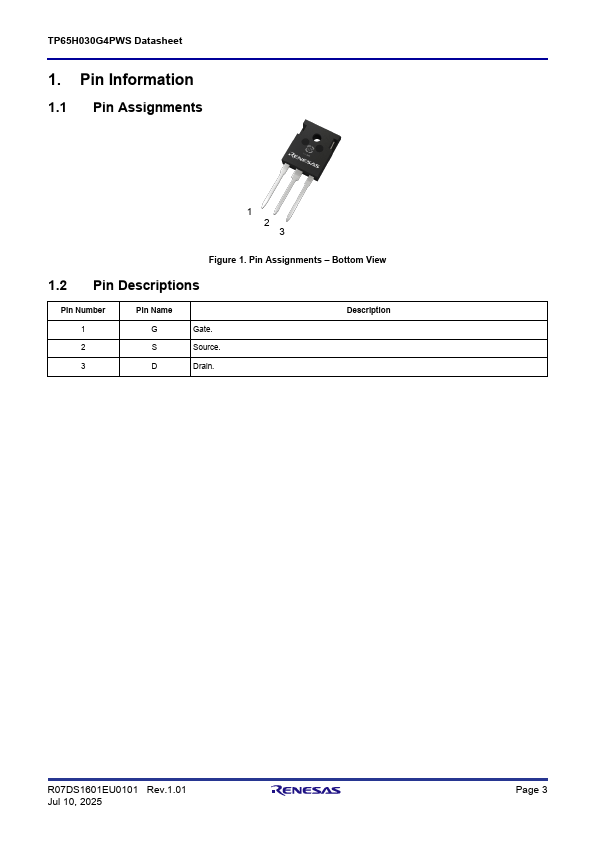

datasheet Preview Page 3

Datasheet Details

Part number	TP65H030G4PWS
Manufacturer	Renesas ↗
File Size	918.40 KB
Description	650V GaN FET
Datasheet	TP65H030G4PWS-Renesas.pdf

TP65H030G4PWS Product details

Description

The TP65H030G4PWS 650V, 30mΩ Gallium Nitride (GaN) FET is a normally-off device using Renesas’ Gen IV plus platform.

Features

Ultra-fast switching Gen IV plus GaN.
JEDEC-qualified GaN technology.
Dynamic RDS(on)eff production tested.
Zero reverse recovery charge.
Reduced crossover loss.
RoHS compliant and Halogen-free packaging.
