SLG46538 - Programmable Mixed-signal Matrix

Renesas

The SLG46538 by Renesas is a Programmable Mixed-signal Matrix. Below is the official datasheet preview.

📥 Download Datasheet

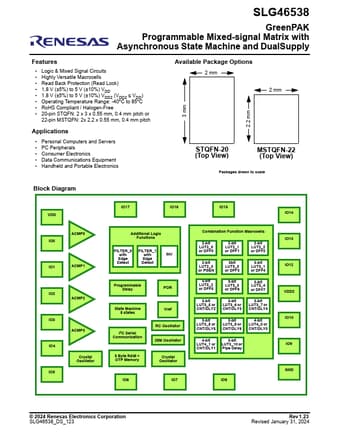

SLG46538 Programmable Mixed-signal Matrix by Renesas - Datasheet Preview — Official preview page of the **SLG46538** Programmable Mixed-signal Matrix datasheet (Renesas).

Datasheet Details

Part number	SLG46538
Manufacturer	Renesas
File Size	4.49 MB
Description	Programmable Mixed-signal Matrix
Datasheet	SLG46538-Renesas.pdf
Additional preview pages of the SLG46538 datasheet.

SLG46538 Product details

Description

2.1 Functional Pin Description STQFN MSTQFN Pin 20L Pin # 22L Pin# Name 1 16 VDD Signal Name VDD Function Power Supply IO0 General Purpose Input 2 1 IO0 3 2 IO1 IO1 General Purpose I/O with OE 4 3 IO2 IO2 General Purpose I/O 5 4 IO3 IO3 General Purpose I/O with OE IO4 General Purpose I/O 6 5 IO4 ACMP0+ Analog Comparator 0 Positive Input IO5 General Purpose I/O with OE 7 6 IO5 ACMP0- Analog Comparator 0 Negative Input Input Options -Digital

Features

Logic & Mixed Signal Circuits.
Highly Versatile Macrocells.
Read Back Protection (Read Lock).
1.8 V (±5%) to 5 V (±10%) VDD.
1.8 V (±5%) to 5 V (±10%) VDD2 (VDD2 ≤ VDD).
Operating Temperature Range: -40°C to 85°C.
RoHS Compliant / Halogen-Free.
20-pin STQFN: 2 x 3 x 0.55 mm, 0.4 mm pitch or 22-pin MSTQFN: 2x 2.2 x 0.55 mm, 0.4 mm pitch.
