RJK60S7DPK-M0 - High Speed Power Switching MOS FET

RJK60S7DPK-M0 Description

Preliminary Datasheet RJK60S7DPK-M0 600V - 30A - SJ MOS FET High Speed Power Switching R07DS0642EJ0300 Rev.3.00 Dec 10, 2012 .

RJK60S7DPK-M0 Features

* Superjunction MOSFET
* Low on-resistance RDS(on) = 0.1  typ. (at ID = 15 A, VGS = 10 V, Ta = 25C)
* High speed switching tf = 9 ns typ. (at ID = 15 A, VGS = 10 V, RL = 20 , Rg = 10 , Ta = 25C) Outline RENESAS Package code: PRSS0004ZH-A (Package name:TO-3PSG) 4 D 1 23 G S 1.

📥 Download Datasheet

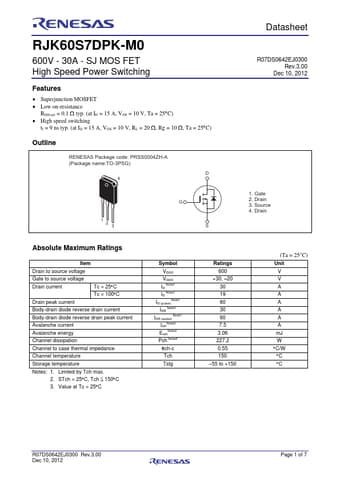

Preview of RJK60S7DPK-M0 PDF
