ISL8013 - 3A Low Quiescent Current 1MHz High Efficiency Synchronous Buck Regulator

ISL8013 Description

ISL8013 NROETCROEMCMOEMNMDEENDDREDEPFLOARCNEMEWENDTEPSAIGRNTS ISL8013A 3A Low Quiescent Current 1MHz High Efficiency Synchronous Buck Regulator DAT.
PIN NUMBER 1, 2 3 5 PIN NAME VIN VDD EN 7 4 13, 14, 15 11, 12 9, 10 8 6, 16 - PG SYNCH LX PGND SGND VFB NC Exposed Pad DESCRIPTION Input supply.

ISL8013 Features

* include internal soft-start, internal compensation, overcurrent protection, and thermal shutdown. The ISL8013 is offered in a 4mmx4mm 16 Ld QFN package with 1mm maximum height. The complete converter occupies less than 0.4in2 area. Features
* High Efficiency Synchronous Buck Regulator with

ISL8013 Applications

* DC/DC POL Modules
* µC/µP, FPGA and DSP Power
* Plug-in DC/DC Modules for Routers and Switchers
* Portable Instruments
* Test and Measurement Systems
* Li-ion Battery Powered Devices
* Small Form Factor (SFP) Modules
* Bar Code Reader

📥 Download Datasheet

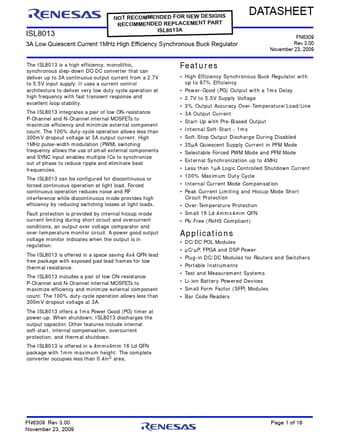

Preview of ISL8013 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISL8013
Manufacturer
Renesas ↗
File Size
2.19 MB
Datasheet
ISL8013-Renesas.pdf
Description
3A Low Quiescent Current 1MHz High Efficiency Synchronous Buck Regulator
