ISL80138 - 150mA Linear Regulator

Renesas

📥 Download Datasheet

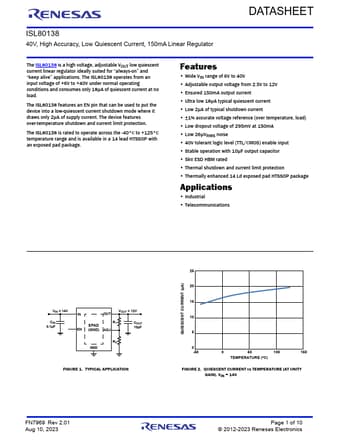

ISL80138 Datasheet Preview — Preview of ISL80138 PDF

Datasheet Details

Part number	ISL80138
Manufacturer	Renesas
File Size	771.26 KB
Description	150mA Linear Regulator
Datasheet	ISL80138-Renesas.pdf

ISL80138 Product details

Description

PIN NUMBER 1, 3, 4, 5, 6, 9, 10, 11, 13 2 7 8 12 14 - PIN NAME DESCRIPTION NC Pins have internal termination and can be left unconnected.Connection to ground is optional.IN EN GND ADJ OUT EPAD Input voltage pin.A minimum 0.1µF ceramic capacitor is required for proper operation.Range 6V to 40V.Enable pin.High on this pin enables the device.Range 0V to VIN.Ground pin.This pin is connected to the external feedback resistor divider which sets the LDO output voltage.Regulated output

Features

an EN pin that can be used to put the device into a low-quiescent current shutdown mode where it draws only 2µA of supply current. The device features over-temperature shutdown and current limit protection. The ISL80138 is rated to operate across the -40°C to +125°C temperature range and is available in a 14 lead HTSSOP with an exposed pad package. Features.
Wide VIN range of 6V to 40V.
Adjustable output voltage from 2.5V to 12V.
Ensured 150mA output current.
