ISL80136 - 50mA Linear Regulator

Renesas

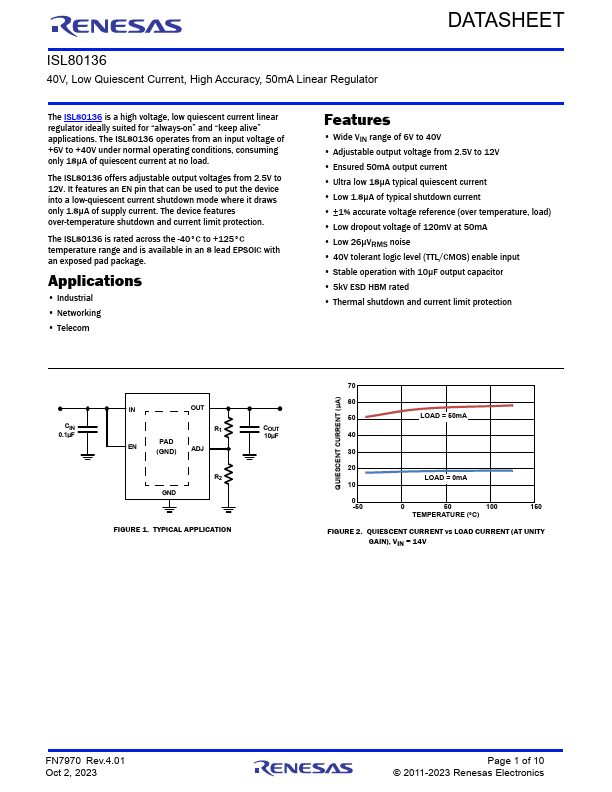

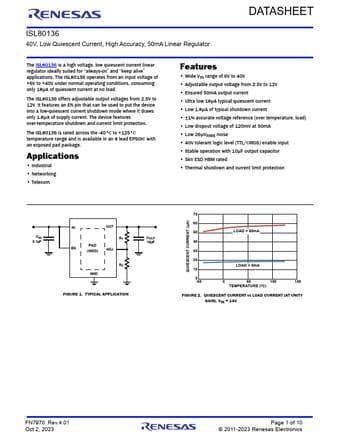

The ISL80136 by Renesas is a 50mA Linear Regulator. Below is the official datasheet preview.

📥 Download Datasheet

ISL80136 50mA Linear Regulator by Renesas - Datasheet Preview — Official preview page of the **ISL80136** 50mA Linear Regulator datasheet (Renesas).

Datasheet Details

Part number	ISL80136
Manufacturer	Renesas
File Size	826.35 KB
Description	50mA Linear Regulator
Datasheet	ISL80136-Renesas.pdf

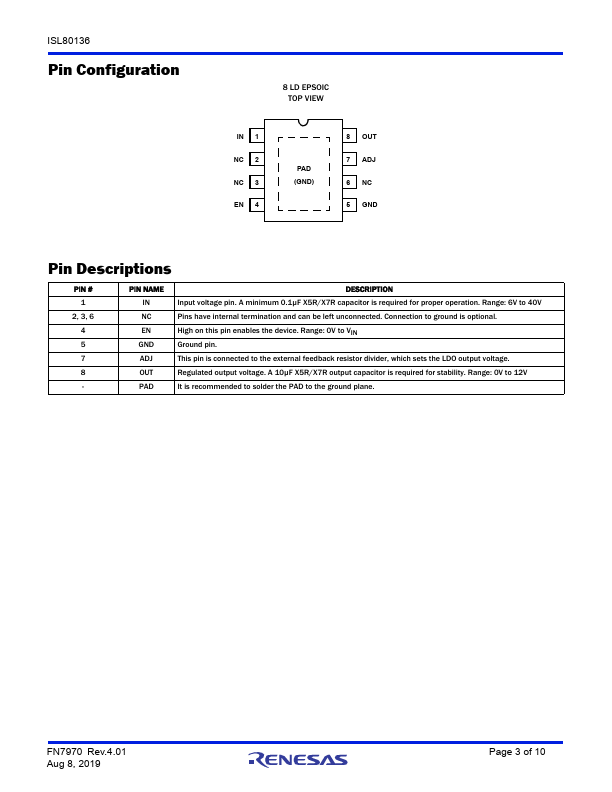

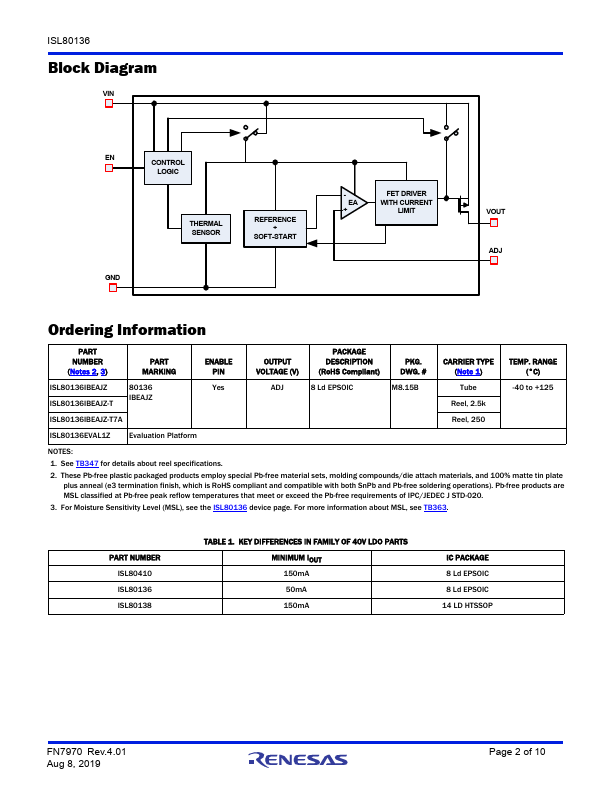

Additional preview pages of the ISL80136 datasheet.

ISL80136 Product details

Description

(RoHS Compliant) PKG.DWG.# CARRIER TYPE (Note 1) TEMP.RANGE (°C) ISL80136IBEAJZ ISL80136IBEAJZ-T 80136 IBEAJZ Yes ADJ 8 Ld EPSOIC M8.15B Tube -40 to +125 Reel, 2.5k ISL80136IBEAJZ-T7A Reel, 250 ISL80136EVAL1Z Evaluation Platform NOTES: 1. See TB347 for details about reel specifications.2. These Pb-free plastic packaged products employ special Pb-free material sets, molding compounds/die attach materials, and 100% matte tin plate plus anneal (e3 termination finish, which is Ro

Features

an EN pin that can be used to put the device into a low-quiescent current shutdown mode where it draws only 1.8µA of supply current. The device features over-temperature shutdown and current limit protection. The ISL80136 is rated across the -40°C to +125°C temperature range and is available in an 8 lead EPSOIC with an exposed pad package.
