ISL80101 - High Performance 1A LDO

Renesas

📥 Download Datasheet

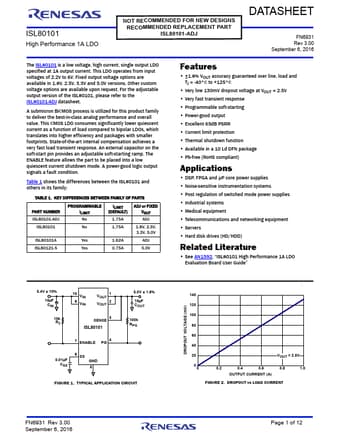

ISL80101 Datasheet Preview — Preview of ISL80101 PDF

Datasheet Details

Part number	ISL80101
Manufacturer	Renesas
File Size	739.96 KB
Description	High Performance 1A LDO
Datasheet	ISL80101-Renesas.pdf

ISL80101 Product details

Description

PIN NUMBER 1, 2 3 4 5 6 7 8 9, 10 - PIN NAME VOUT SENSE PG GND SS ENABLE NC VIN EPAD DESCRIPTION Regulated output voltage.A minimum 10µF X5R/X7R output capacitor is required for stability.See “External Capacitor Requirements” on page 8 for more details.Sense is the LDO's output feedback, providing a remote voltage sensing.This is an open-drain logic output used to indicate the status of the output voltage.Logic low indicates VOUT is not in regulation.This pin must be grounded if not us

Features

±1.8% VOUT accuracy guaranteed over line, load and TJ = -40°C to +125°C.
Very low 130mV dropout voltage at VOUT = 2.5V.
Very fast transient response.
Programmable soft-starting.
Power-good output.
Excellent 65dB PSRR.
Current limit protection.
Thermal shutdown function.
Available in a 10 Ld DFN package.
Pb-free (RoHS compliant).
