ISL80103, ISL80102 - High Performance 2A and 3A Linear Regulators

Renesas

📥 Download Datasheet

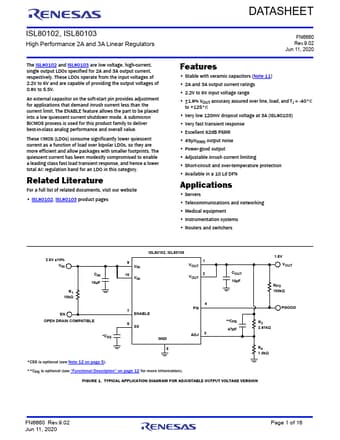

ISL80103 Datasheet Preview — This datasheet PDF includes multiple part numbers: ISL80103, ISL80102. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ISL80103, ISL80102
Manufacturer	Renesas
File Size	1.30 MB
Description	High Performance 2A and 3A Linear Regulators
Datasheet	ISL80102-Renesas.pdf
Note	This datasheet PDF includes multiple part numbers: ISL80103, ISL80102. Please refer to the document for exact specifications by model.

ISL80103 Product details

Description

on page 12 for more information).

Features

Stable with ceramic capacitors (Note 11).
2A and 3A output current ratings.
2.2V to 6V input voltage range.
±1.8% VOUT accuracy assured over line, load, and TJ = -40°C to +125°C.
Very low 120mV dropout voltage at 3A (ISL80103).
Very fast transient response.
Excellent 62dB PSRR.
49µVRMS output noise.
Power-good output.
Adjustable inrush current limiting.
Short-circuit and over-temperature protectio.
