ISL80101A - High Performance 1A Linear Regulator

Renesas

📥 Download Datasheet

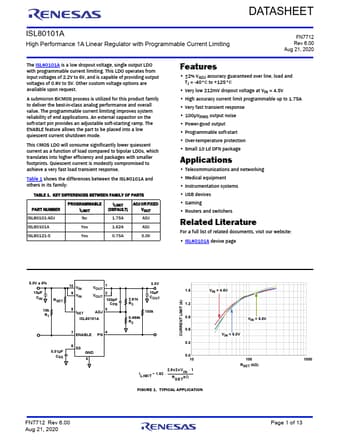

ISL80101A Datasheet Preview — Preview of ISL80101A PDF

Datasheet Details

Part number	ISL80101A
Manufacturer	Renesas
File Size	799.83 KB
Description	High Performance 1A Linear Regulator
Datasheet	ISL80101A-Renesas.pdf

ISL80101A Product details

Description

PIN NUMBER 1, 2 3 4 5 6 7 8 9, 10 - PIN NAME VOUT ADJ PG GND SS ENABLE ISET VIN EPAD DESCRIPTION Output voltage.A minimum 10µF X5R/X7R output capacitor (for VOUT from 1.5V to 5V) is required for stability.See “External Capacitor Requirements” on page 8 for more details.LDO output feedback input.To adjust the output voltage, connect this pin to a resistive voltage divider from VOUT to GND.VOUT in regulation signal.Logic low indicates VOUT is not in regulation, and must be grounded if no

Features

±2% VADJ accuracy guaranteed over line, load and TJ = -40°C to +125°C.
Very low 212mV dropout voltage at VIN = 4.5V.
High accuracy current limit programmable up to 1.75A.
Very fast transient response.
100µVRMS output noise.
Power-good output.
Programmable soft-start.
Over-temperature protection.
Small 10 Ld DFN package.
