ICS850S1601I - SINGLE-ENDED MULTIPLEXER

Renesas

📥 Download Datasheet

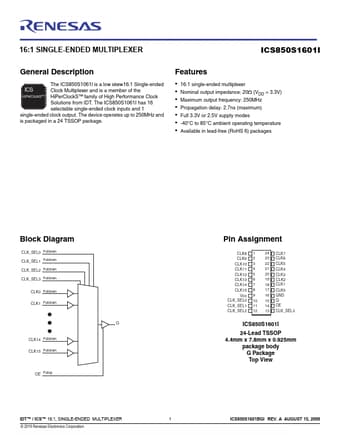

ICS850S1601I Datasheet Preview — Preview of ICS850S1601I PDF

Datasheet Details

Part number	ICS850S1601I
Manufacturer	Renesas
File Size	878.27 KB
Description	SINGLE-ENDED MULTIPLEXER
Datasheet	ICS850S1601I-Renesas.pdf

ICS850S1601I Product details

Description

The ICS850S1061I is a low skew16:1 Single-ended ICS Clock Multiplexer and is a member of the HiPerClockS™ HiPerClockS™ family of High Performance Clock Solutions from IDT.The ICS850S1061I has 16 selectable single-ended clock inputs and 1 single-ended clock output.The device operates up to 250MHz and is packaged in a 24 TSSOP package.

Features

16:1 single-ended multiplexer.
Nominal output impedance: 20Ω (VDD = 3.3V).
Maximum output frequency: 250MHz.
Propagation delay: 2.7ns (maximum).
Full 3.3V or 2.5V supply modes.
-40°C to 85°C ambient operating temperature.
Available in lead-free (RoHS 6) packages Block Diagram CLK_SEL0 Pulldown CLK_SEL1 Pulldown CLK_SEL2 Pulldown CLK_SEL3 Pulldown CLK0 Pulldown CLK1 Pulldown Q CLK14 Pulldown CLK15 Pulldown OE Pullup IDT™ / ICS™ 16:.
