ICS8512061I - SINGLE CHANNEL 0.7V DIFFERENTIALTO-LVTTL TRANSCEIVER

Integrated Device Technology

📥 Download Datasheet

ICS8512061I Datasheet Preview — Preview of ICS8512061I PDF

Datasheet Details

Part number	ICS8512061I
Manufacturer	Integrated Device Technology
File Size	919.14 KB
Description	SINGLE CHANNEL 0.7V DIFFERENTIALTO-LVTTL TRANSCEIVER
Datasheet	ICS8512061I_IntegratedDeviceTechnology.pdf

ICS8512061I Product details

Description

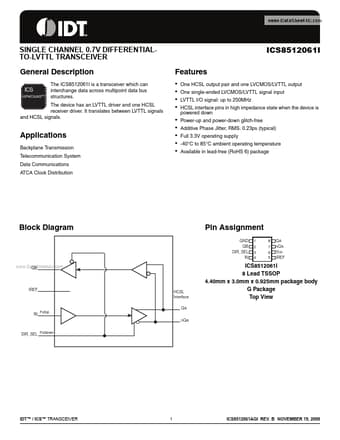

ICS HiPerClockS™ The ICS8512061I is a transceiver which can interchange data across multipoint data bus structures.The device has an LVTTL driver and one HCSL receiver driver.It translates between LVTTL signals and HCSL signals.Applications Backplane Transmission Telecommunication System Data Communications ATCA Clock Distribution Block Diagram Pin Assignment GND QB DIR_SEL IN 1 2 3 4 8 7 6 5 QA nQA VDD IREF www.DataSheet4U.com QB IREF HCSL Interface QA ICS8512061I 8 Lead TSSOP 4.40m

Features

One HCSL output pair and one LVCMOS/LVTTL output One single-ended LVCMOS/LVTTL signal input LVTTL I/O signal: up to 250MHz HCSL interface pins in high impedance state when the device is powered down Power-up and power-down glitch-free Additive Phase Jitter, RMS: 0.23ps (typical) Full 3.3V operating supply -40°C to 85°C ambient operating temperature Available in lead-free (RoHS 6) package General Descriptio.
