ICS85105I - DIFFERENTIAL/LVCMOS-TO-0.7V HCSL FANOUT BUFFER

Integrated Device Technology

📥 Download Datasheet

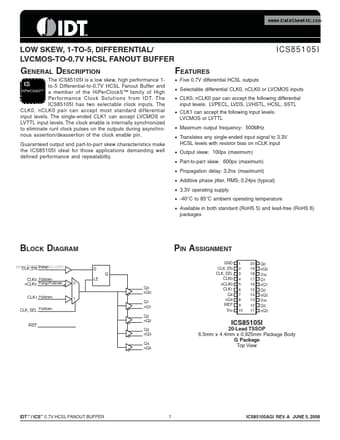

ICS85105I Datasheet Preview — Preview of ICS85105I PDF

Datasheet Details

Part number	ICS85105I
Manufacturer	Integrated Device Technology
File Size	344.39 KB
Description	DIFFERENTIAL/LVCMOS-TO-0.7V HCSL FANOUT BUFFER
Datasheet	ICS85105I_IntegratedDeviceTechnology.pdf

ICS85105I Product details

Description

The ICS85105I is a low skew, high performance 1IC S to-5 Differential-to-0.7V HCSL Fanout Buffer and HiPerClockS™ a member of the HiPerClockS™ family of High Perfor mance Clock Solutions from IDT.

Features

Five 0.7V differential HCSL outputs.
Selectable differential CLK0, nCLK0 or LVCMOS inputs.
CLK0, nCLK0 pair can accept the following differential input levels: LVPECL, LVDS, LVHSTL, HCSL, SSTL.
CLK1 can accept the following input levels: LVCMOS or LVTTL.
Maximum output frequency: 500MHz.
Translates any single-ended input signal to 3.3V HCSL levels with resistor bias on nCLK input.
Output skew: 100ps (maximum).
Part-to-part.
