ICS8516 - 1-TO-16 DIFFERENTIAL-TO-LVDS CLOCK DISTRIBUTION

Name: ICS8516
SKU: ICS8516-662198

Integrated Circuit Systems

📥 Download Datasheet

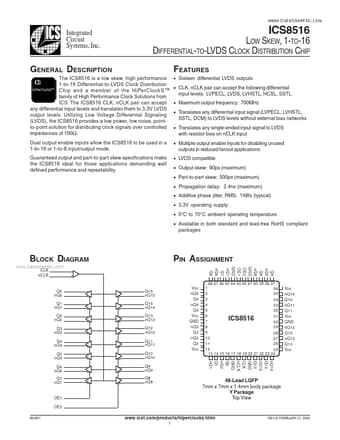

ICS8516 Datasheet Preview — Preview of ICS8516 PDF

Datasheet Details

Part number	ICS8516
Manufacturer	Integrated Circuit Systems
File Size	204.09 KB
Description	1-TO-16 DIFFERENTIAL-TO-LVDS CLOCK DISTRIBUTION
Datasheet	ICS8516_IntegratedCircuitSystems.pdf

ICS8516 Product details

Description

The ICS8516 is a low skew, high performance 1-to-16 Differential-to-LVDS Clock Distribution HiPerClockS™ Chip and a member of the HiPerClock S ™ family of High Performance Clock Solutions from ICS.

Features

Sixteen differential LVDS outputs.
CLK, nCLK pair can accept the following differential input levels: LVPECL, LVDS, LVHSTL, HCSL, SSTL.
Maximum output frequency: 700MHz.
Translates any differential input signal (LVPECL, LVHSTL, SSTL, DCM) to LVDS levels without external bias networks.
Translates any single-ended input signal to LVDS with resistor bias on nCLK input.
Multiple output enable inputs for disabling unused outputs in reduced fanout.
