DA14533 - Bluetooth 5.3 SoC

Renesas

📥 Download Datasheet

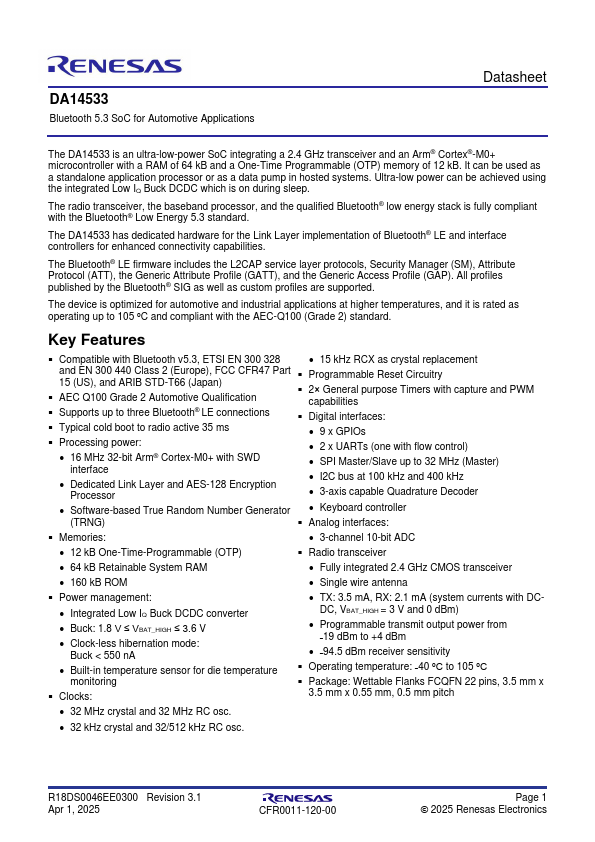

DA14533 Datasheet Preview — Preview of DA14533 PDF

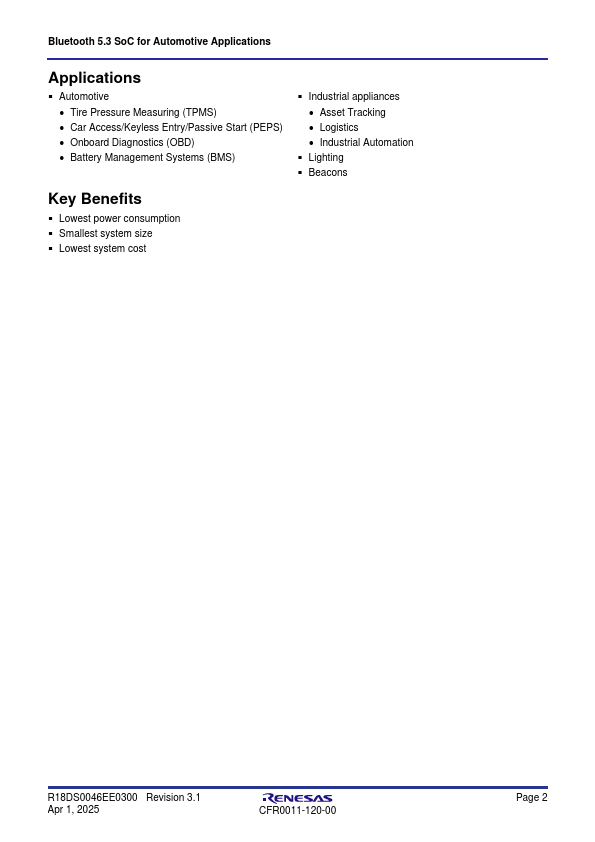

datasheet Preview Page 2

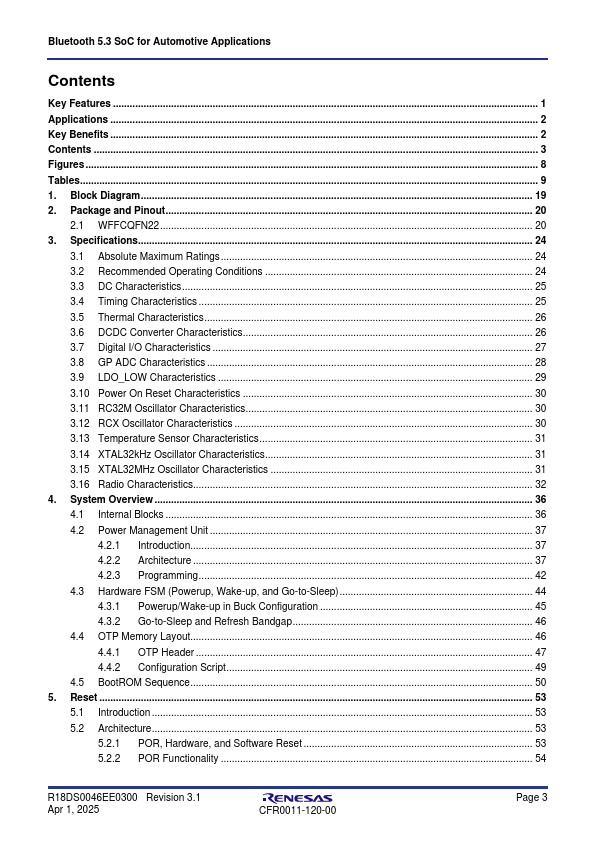

datasheet Preview Page 3

Datasheet Details

Part number	DA14533
Manufacturer	Renesas
File Size	4.51 MB
Description	Bluetooth 5.3 SoC
Datasheet	DA14533-Renesas.pdf

DA14533 Product details

Features

Compatible with Bluetooth v5.3, ETSI EN 300 328.
15 kHz RCX as crystal replacement and EN 300 440 Class 2 (Europe), FCC CFR47 Part.
Programmable Reset Circuitry 15 (US), and ARIB STD-T66 (Japan).
AEC Q100 Grade 2 Automotive Qualification.
2× General purpose Timers with capture and PWM capabilities.
Supports up to three Bluetooth® LE connections.
Digital interfaces:.
Typical cold boot to radio active 35 ms.
9 x GPIOs.
Processing.
