DA14535 - Ultra Low Power Bluetooth 5.3 SoC

Features

  • Compatible with Bluetooth® v5.3, ETSI EN 300 328.
  • Clocks and EN 300 440 Class 2 (Europe), FCC CFR47 Part 15 (US) and ARIB STD-T66 (Japan).
  • Supports up to three Bluetooth® LE connections.
  • Typical cold boot to radioactive 35 ms.
  • Processing power.
  • 32 MHz crystal and 32 MHz RC osc.
  • 32 kHz crystal and 32/512 kHz RC osc.
  • 15 kHz RCX as crystal replacement.
  • 2× General purpose Timers with capture and PWM capabilities.
  • 16 MHz 32-bit.

📥 Download Datasheet

Datasheet Details

Part number DA14535
Manufacturer Renesas
File Size 3.64 MB
Description Ultra Low Power Bluetooth 5.3 SoC
Datasheet download datasheet DA14535 Datasheet

📁 Similar Datasheet

  • DA14580 - Low Power Bluetooth Smart SoC (Dialog Semiconductor)
  • DA14581 - Low Power Bluetooth Smart SoC (Dialog Semiconductor)
  • DA14582 - Bluetooth Low Energy 4.2 SoC (Dialog Semiconductor)
  • DA14583 - Bluetooth Low Energy 4.2 SoC (Dialog Semiconductor)
  • DA14585 - Bluetooth 5.0 SoC (Dialog Semiconductor)
  • DA14586 - Bluetooth 5.0 SoC (Dialog Semiconductor)
  • DA14680 - Bluetooth Low Energy 4.2 SoC (Dialog Semiconductor)
  • DA14681 - Bluetooth Low Energy 4.2 SoC (Dialog Semiconductor)
  • DA14682 - Bluetooth Low Energy-5.0 SoC (Dialog Semiconductor)
  • DA14683 - Bluetooth Low Energy-5.0 SoC (Dialog Semiconductor)
Other Datasheets by Renesas
  • DA14535MOD - SmartBond TINY Bluetooth LE Module
  • DA14530 - Low Power Bluetooth 5.1 SoC
  • DA14531 - Ultra Low Power Bluetooth 5.1 SoC
  • DA14531MOD - SmartBond TINY Bluetooth LE Module
  • DA14533 - Bluetooth 5.3 SoC
  • DA14580 - Bluetooth Low Energy 4.2 SoC
  • DA14581 - Bluetooth Low Energy 4.2 SoC
  • DA14582 - Bluetooth Low Energy 4.2 SoC

Full PDF Text Transcription

Click to expand full text

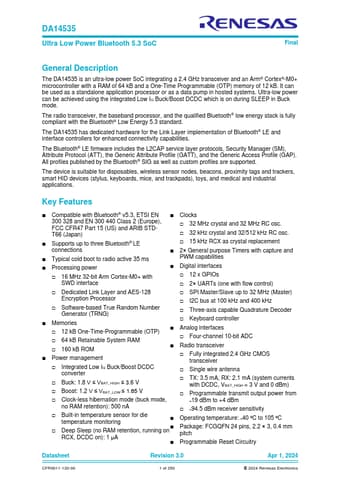

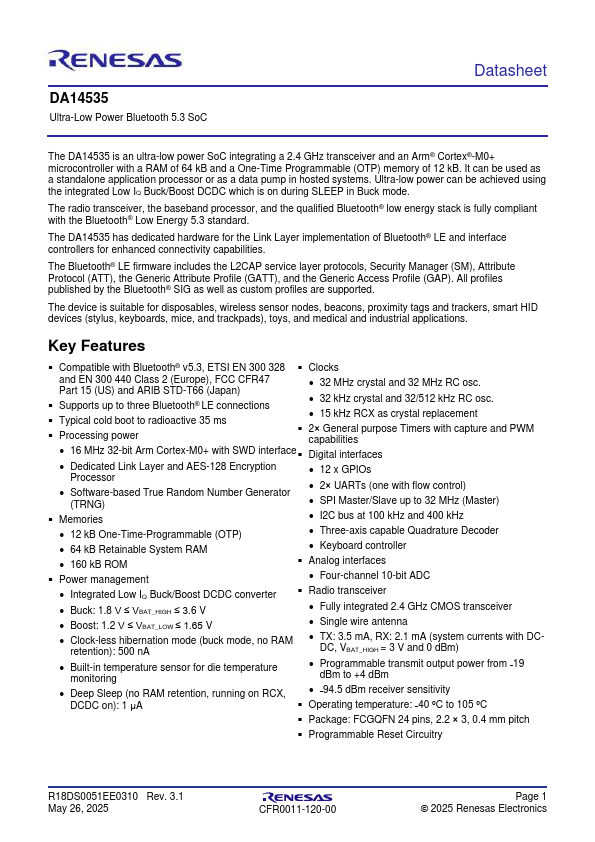

DA14535 Ultra-Low Power Bluetooth 5.3 SoC Datasheet The DA14535 is an ultra-low power SoC integrating a 2.4 GHz transceiver and an Arm® Cortex®-M0+ microcontroller with a RAM of 64 kB and a One-Time Programmable (OTP) memory of 12 kB. It can be used as a standalone application processor or as a data pump in hosted systems. Ultra-low power can be achieved using the integrated Low IQ Buck/Boost DCDC which is on during SLEEP in Buck mode. The radio transceiver, the baseband processor, and the qualified Bluetooth® low energy stack is fully compliant with the Bluetooth® Low Energy 5.3 standard. The DA14535 has dedicated hardware for the Link Layer implementation of Bluetooth® LE and interface controllers for enhanced connectivity capabilities.
