DA14682 - Bluetooth Low Energy-5.0 SoC

Dialog Semiconductor

📥 Download Datasheet

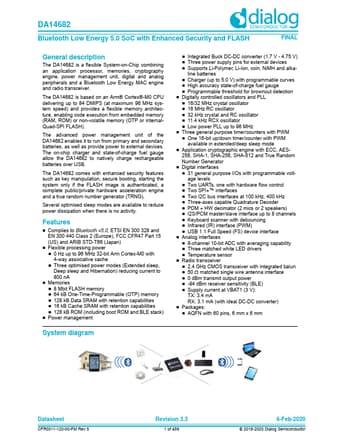

DA14682 Datasheet Preview — Preview of DA14682 PDF

Datasheet Details

Part number	DA14682
Manufacturer	Dialog Semiconductor
File Size	3.39 MB
Description	Bluetooth Low Energy-5.0 SoC
Datasheet	DA14682-DialogSemiconductor.pdf

DA14682 Product details

Description

The DA14682 is a flexible System-on-Chip combining an application processor, memories, cryptography engine, power management unit, digital and analog peripherals and a Bluetooth Low Energy MAC engine and radio transceiver. Integrated Buck DC-DC converter (1.7 V - 4.75 V) Three power supply pins for external devices Supports Li-Polymer, Li-Ion, coin, NiMH and alka- line batteries Charger (up to 5.0 V) with programmable curves High accuracy state-of-charge fuel gauge

Features

31 general purpose I/Os with programmable volt- such as key manipulation, secure booting, starting the age levels system only if the FLASH image is authenticated, a.
Two UARTs, one with hardware flow control complete public/private hardware acceleration engine.
Two SPI+™ interfaces and a true random number generator (TRNG).
Two I2C bus interfaces at 100 kHz, 400 kHz Several optimised sleep modes are available to reduce power dissipation when there is no activity.
