DA14681 - Bluetooth Low Energy 4.2 SoC

Renesas

📥 Download Datasheet

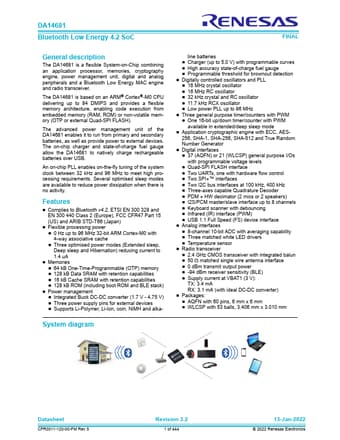

DA14681 Datasheet Preview — Preview of DA14681 PDF

Datasheet Details

Part number	DA14681
Manufacturer	Renesas
File Size	5.56 MB
Description	Bluetooth Low Energy 4.2 SoC
Datasheet	DA14681-Renesas.pdf

DA14681 Product details

Description

line batteries The DA14681 is a flexible System-on-Chip combining an application processor, memories, cryptography engine, power management unit, digital and analog peripherals and a Bluetooth Low Energy MAC engine and radio transceiver.The DA14681 is based on an ARM® Cortex®-M0 CPU Charger (up to 5.0 V) with programmable curves High accuracy state-of-charge fuel gauge Programmable threshold for brownout detection Digitally controlled oscillators and PLL 16 MHz

Features

PDM + HW decimator (2 mics or 2 speakers).
I2S/PCM master/slave interface up to 8 channels.
Complies to Bluetooth v4.2, ETSI EN 300 328 and EN 300 440 Class 2 (Europe), FCC CFR47 Part 15 (US) and ARIB STD-T66 (Japan).
Flexible processing power.
0 Hz up to 96 MHz 32-bit ARM Cortex-M0 with 4-way associative cache.
Three optimised power modes (Extended sleep, Deep sleep and Hibernation) reducing current to 1.4 uA.
Memories.
64 kB One-Time-Programmable (OTP.
