DA14585 - Bluetooth 5.0 SoC

Description

The DA14585 is an ultra-low power SoC integrating a 2.4 GHz transceiver and an ARM Cortex-M0™ microcontroller with 96kB of RAM and 64kB of One-Time Programmable (OTP) memory.

Features

  • Complies with Bluetooth V5.0, ETSI EN 300 328 and EN.
  • Flexible Reset Circuitry 300 440 Class 2 (Europe), FCC CFR47 Part 15 (US) and ARIB STD-T66 (Japan).
  • System & Power On Reset in a single pin.
  • Supports up to 8 Bluetooth LE connections.
  • General purpose, Capture and Sleep timers.
  • Fast cold boot in less than 50 ms.
  • Digital interfaces.
  • Processing power.
  • Gen. purpose I/Os: 14 (WLCSP34), 25 (QFN40), 32 (QFN48).
  • 16 MHz 32 bit A.

📥 Download Datasheet

📁 Similar Datasheet

  • DA14585 - Bluetooth-5.0 SoC (Renesas)
  • DA14580 - Bluetooth Low Energy 4.2 SoC (Renesas)
  • DA14581 - Bluetooth Low Energy 4.2 SoC (Renesas)
  • DA14582 - Bluetooth Low Energy 4.2 SoC (Renesas)
  • DA14583 - Bluetooth Low Energy 4.2 SoC (Renesas)
  • DA14530 - Low Power Bluetooth 5.1 SoC (Renesas)
  • DA14531 - Ultra Low Power Bluetooth 5.1 SoC (Renesas)
  • DA14531MOD - SmartBond TINY Bluetooth LE Module (Renesas)
  • DA14533 - Bluetooth 5.3 SoC (Renesas)
  • DA14535 - Ultra Low Power Bluetooth 5.3 SoC (Renesas)
Other Datasheets by Dialog Semiconductor
  • DA14580 - Low Power Bluetooth Smart SoC
  • DA14581 - Low Power Bluetooth Smart SoC
  • DA14582 - Bluetooth Low Energy 4.2 SoC
  • DA14583 - Bluetooth Low Energy 4.2 SoC
  • DA14586 - Bluetooth 5.0 SoC
  • DA14680 - Bluetooth Low Energy 4.2 SoC
  • DA14681 - Bluetooth Low Energy 4.2 SoC
  • DA14682 - Bluetooth Low Energy-5.0 SoC

Full PDF Text Transcription

Click to expand full text

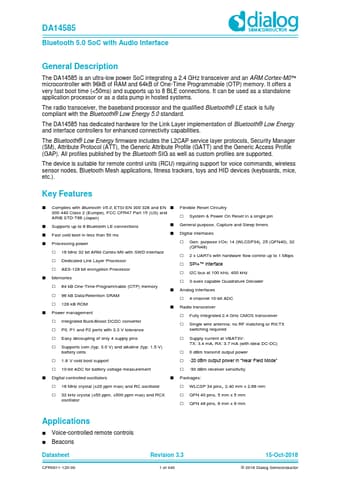

DA14585 Bluetooth 5.0 SoC with Audio Interface General Description The DA14585 is an ultra-low power SoC integrating a 2.4 GHz transceiver and an ARM Cortex-M0™ microcontroller with 96kB of RAM and 64kB of One-Time Programmable (OTP) memory. It offers a very fast boot time (<50ms) and supports up to 8 BLE connections. It can be used as a standalone application processor or as a data pump in hosted systems. The radio transceiver, the baseband processor and the qualified Bluetooth® LE stack is fully compliant with the Bluetooth® Low Energy 5.0 standard. The DA14585 has dedicated hardware for the Link Layer implementation of Bluetooth® Low Energy and interface controllers for enhanced connectivity capabilities.
