BCR10KM-12LA Triac

BCR10KM-12LA Description

BCR10KM-12LA Triac Medium Power Use .

BCR10KM-12LA Features

* IT (RMS) : 10 A
* VDRM : 600 V
* IFGTI , IRGTI, IRGTā…¢ : 30 mA (20 mA)Note5
* Viso : 2000 V Outline TO-220FN 1 23 REJ03G0321-0100 Rev.1.00 Aug.20.2004
* Insulated Type
* Planar Passivation Type
* UL Recognized : Yellow Card No. E223904 File N

BCR10KM-12LA Applications

* Switching mode power supply, washing machine, motor control, heater control, and other general controlling devices Maximum Ratings Parameter Repetitive peak off-state voltageNote1 Non-repetitive peak off-state voltageNote1 Symbol VDRM VDSM Voltage class 12 600 720 Unit V V Rev.1.00, Aug.20.2004

📥 Download Datasheet

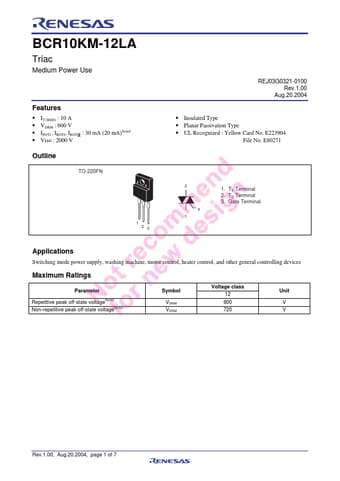

Preview of BCR10KM-12LA PDF
datasheet Preview Page 2 datasheet Preview Page 3
